Omnia CHT-EGT quadruple

Flybox
(Code: 62210-14-80)
Out of stock - Pending replenishment
Diamètre :
462.00 €
200g
DESCRIPTION
OVERVIEW
SPECIFICITIES
Omnia CHT-EGT measures the exhaust gas temperatures for each cylinder (up to 4 cylinders) and the temperatures of the cylinder heads, up to 4 of them. It combines up to 8 separated gauges that can be enabled individually to suit your needs.
The instrument is fully customizable to fit the overwhelming majority of the existing engines.

All the components of the Omnia family are equipped with a state-of-the-art, highly visible display, a powerful 32 bit microcontroller and the latest generation of solid state sensors and components to ensure reliability and accuracy over time.
Up to 16 Omnia family instruments can be connected in cluster to form a communication network, making some data exchange operations simpler.

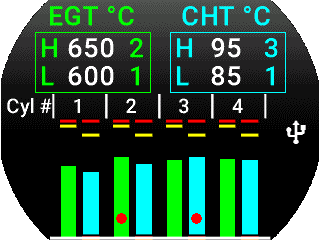

The 4+4 version reads up to 4 CHTs and 4 EGTs

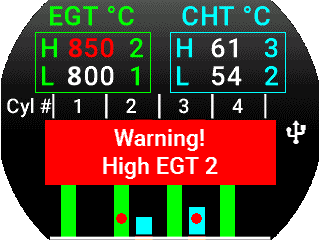

A configurable alarm alerts you if the thresholds are exceeded
Omnia CHT-EGT quadruple
Omnia CHT-EGT quadruple

Indication:

  • 4 CHT input (4+4 version)
  • 4 EGT input (4+4 version)

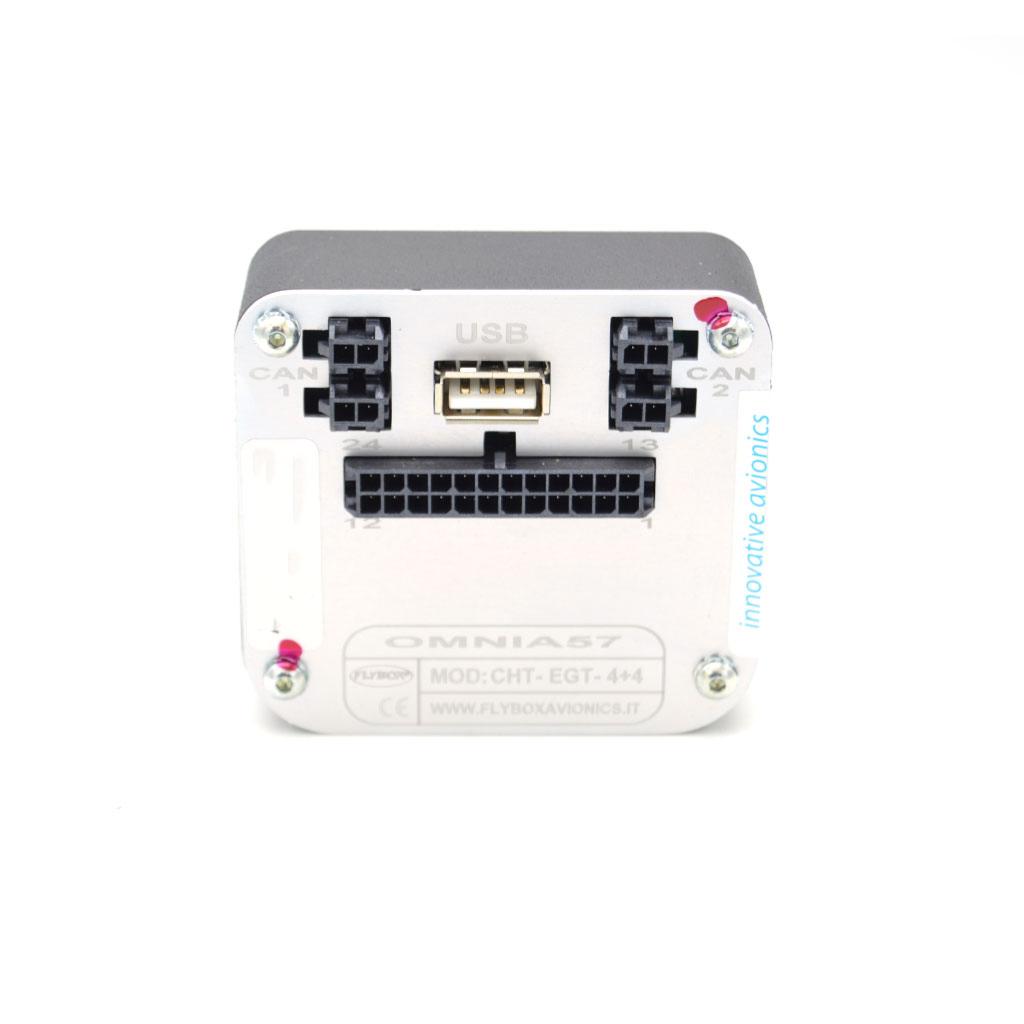

Interfaces:

  • Knob with pushbutton
  • 2 CAN bus
  • Light Sensor input
  • USB 2.0 port
  • Can be connected in cluster with other Omnia instruments

Manufacturing:

  • Rugged case milled from solid aluminium
  • Powder-painted
  • 100% manufactured and tested with automatic processes

Functions:

  • Visual Alarm on screen
  • Transistor Alarm output
  • Manual or Automatic Backlight dimmer
  • Manual or Automatic gauge selection
  • Easy software updating through the USB port


Technical specifications:

  • 2.4" color graphic LCD 320x240 pixels with 1000 nits backlight.

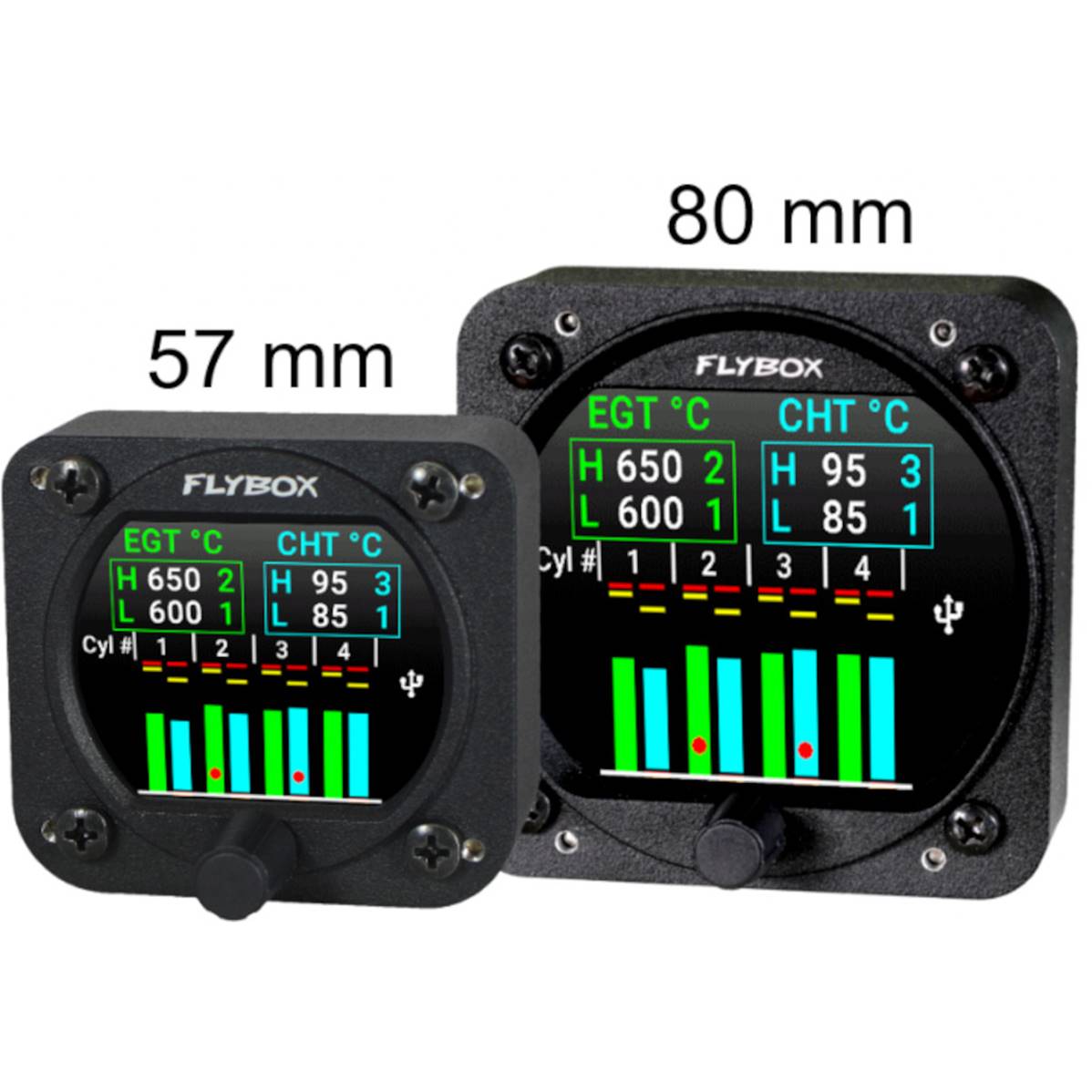

  • Standard mounting 2-1/4” 57mm and 3-1/8” 80mm.
  • Powder painted aluminium case.
  • Dimensions: 68x62x35mm (57), 85x85x40mm (80).
  • Weight: 140g. (57), 230g. (80)
  • Supply voltage: 10 ~ 30 V=.
  • Supply current: 60mA (57), 135mA (80).
  • Open-collector alarm output max 300mA,
  • 4 or 2 CHT input (different models)
  • 4 or 2 EGT input (different models)
  • Operating temperature range: -20 ~ +70°C.
  • Humidity: 90% max (without condensation).
