Cylinders & Trims

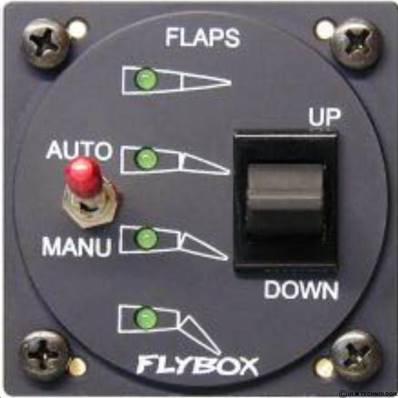

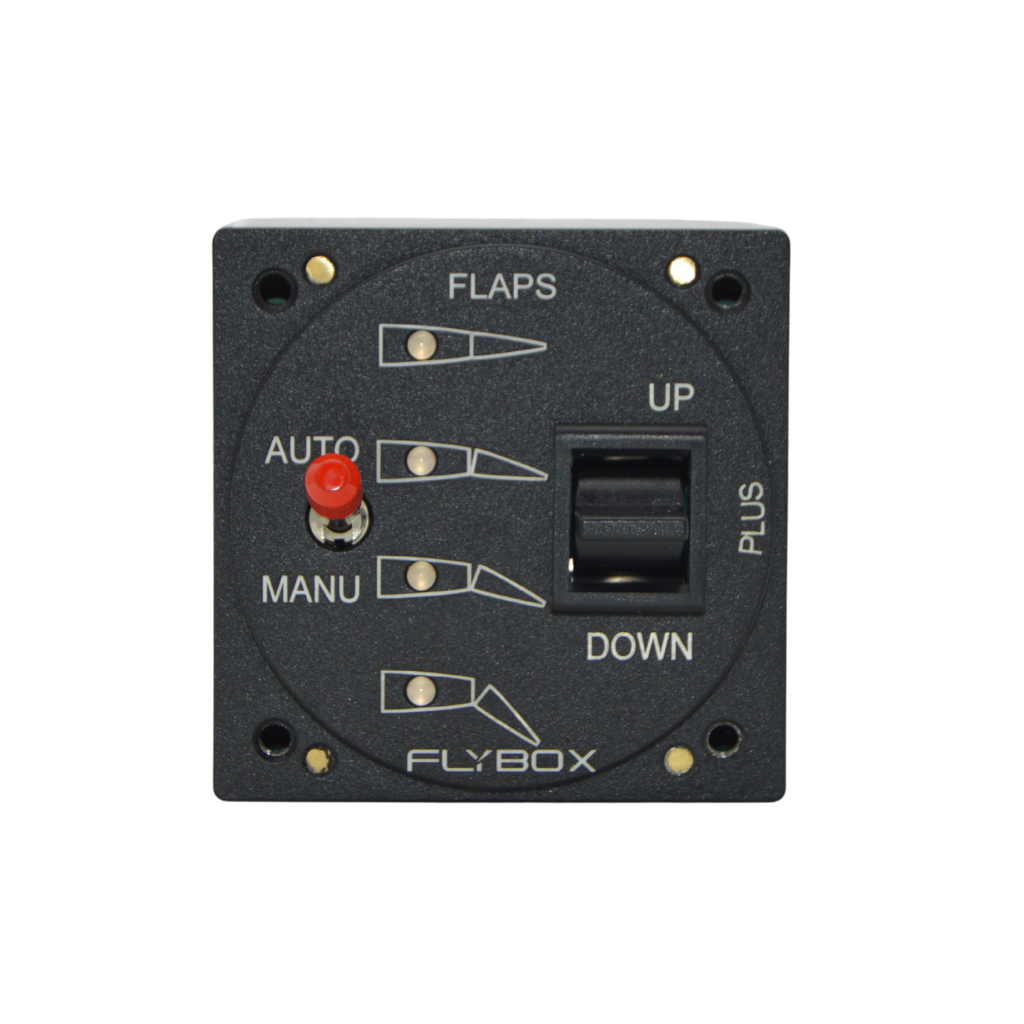

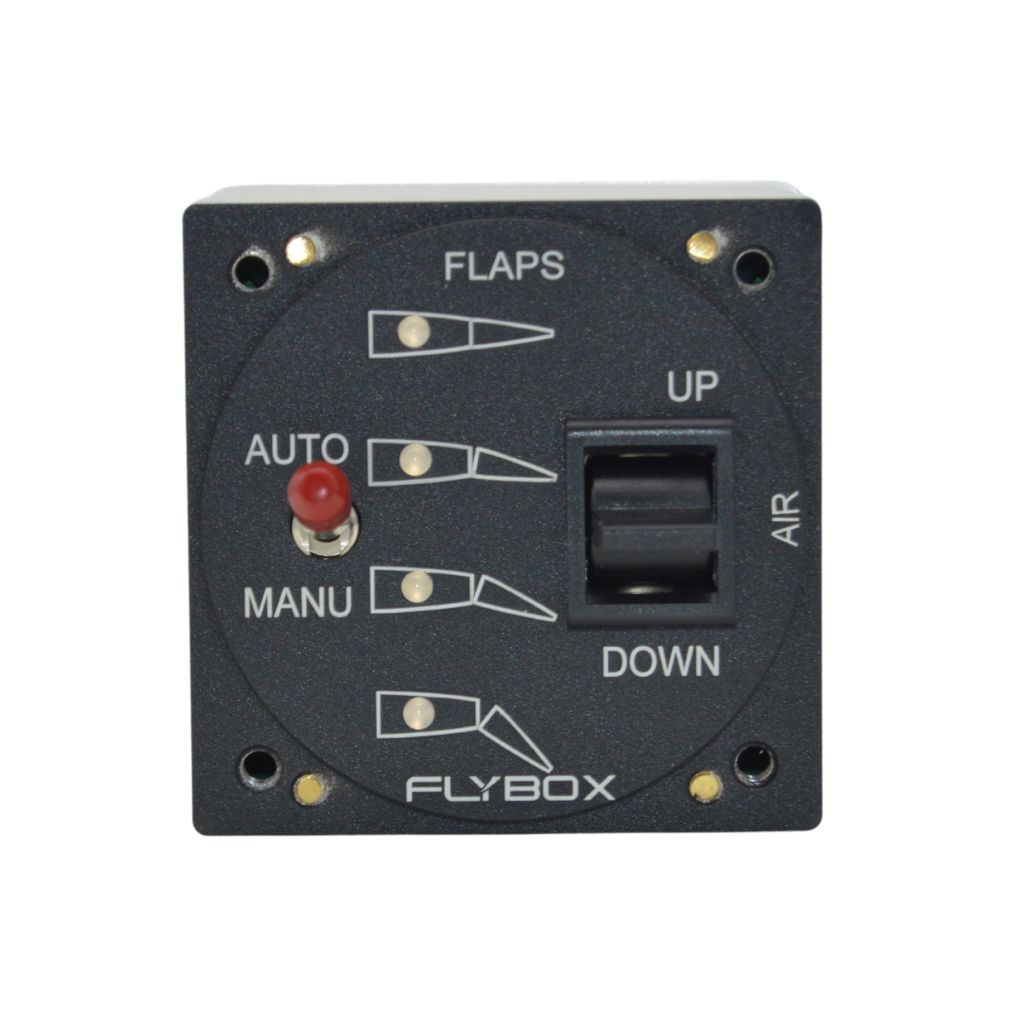

(Code: 60153-57)
Electronic Flap Controller 57mm
310.80 €
The electronic flap controller (EFC) is a device which allows to command ant to control the flap position easily and on an automatic way. The EFC functioning consist in memorizing 4 flaps position which will match to the pilot choice on an automatic way. A LED indicates the flap position to make the viewing easier. Dimensions: 608 x 60 mm (Diam 57 mm) – Depth: 52 mm – Weight: 115 gr - Power supply: 12 ~ 16 V – EFC consumption: 30mA

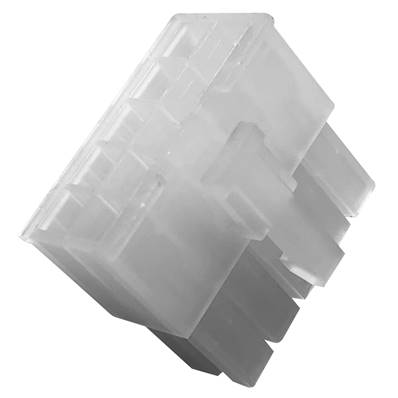

(Code: 60153-C)
Electronic Flap Controller (with re
3.41 €
Connector for Flap controller - Sold without pine

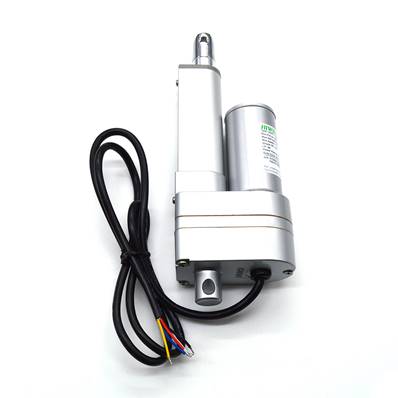

(Code: 60160-050)
Linear actuator stroke 50
310.06 €
Ram with trim-pot, provides with a 50 mm stroke and a limit stop. Characteristics: TYPE: LAS3-1 – Maximum strength: 120 DaN – Abutment strength max: 80 Dan – Max speed: 8/12 sec – Stroke: 50 mm – Tension: 12 volts – Max power: 6 amp – End of travel integrated – Trim-pot: 21 Ohm/ mm – Retracted length: 196 mm – Protection: IP 54

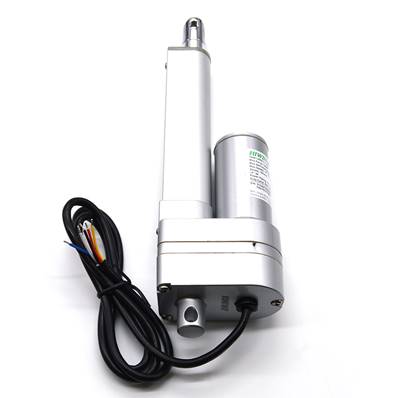

(Code: 60160-100)
Linear actuator stroke 100
314.72 €
Ram with trim-pot, provides with a 100 mm stroke and a limit stop. Characteristics: TYPE: LAS3-1 – Maximum strength: 120 DaN – Abutment strength max: 80 Dan – Max speed: 8/12 sec – Stroke: 50 mm – Tension: 12 volts – Max power: 6 amp – End of travel integrated – Trim-pot: 21 Ohm/ mm – Retracted length: 246 mm – Protection: IP 54

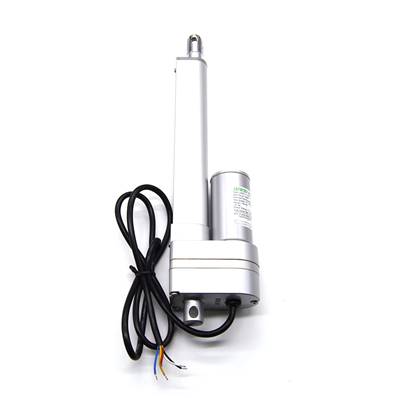

(Code: 60160-150)
Linear actuator stroke 150
317.33 €
Ram with trim-pot, provides with a 150 mm stroke and a limit stop. Characteristics: TYPE: LAS3-1 – Maximum strength: 120 DaN – Abutment strength max: 80 Dan – Max speed: 8/12 sec – Stroke: 50 mm – Tension: 12 volts – Max power: 6 amp – End of travel integrated – Trim-pot: 21 Ohm/ mm – Retracted length: 296 mm – Protection: IP 54

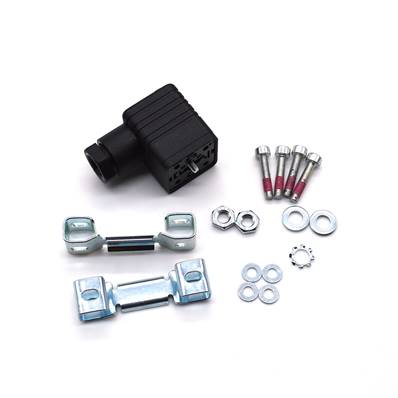

(Code: 60160-P)
Linear actuator stroke 50
210.00 €
Linear position trim-pot which allows you to control 60153 electronic flaps with jacks (which don’t provide trim-pot). Only available on a 100 mm stock.

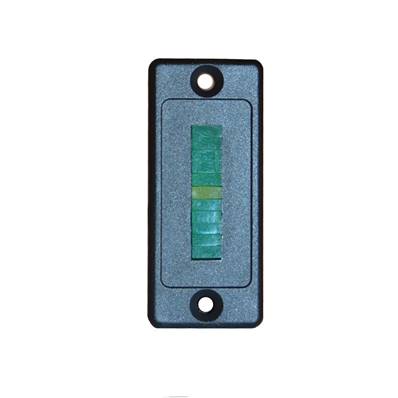

(Code: 60209)
Trim indicator + label
115.00 €
LED indicator of FLAP, TRIM and flaps movements. Made to be used with a potentiometer from 0 to 5kohm. The device is delivered with two crews and nuts to mount on the panel. Dimension: 16.7 mm * 29.8 mm. Weight: 26g

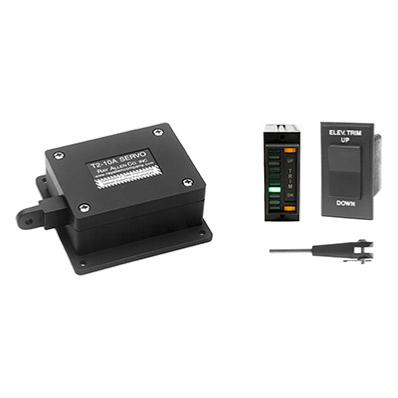

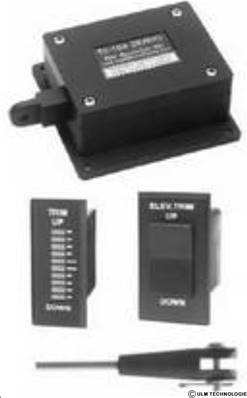

(Code: 60218)
Kit trim Ray Allen
500.48 €
Full depth trim kit including the servomotor with the rod, position indicator and the bascule button, and its feedback. Also exists for the direction and the ailerons.

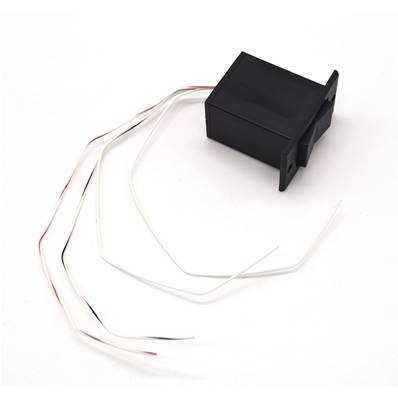

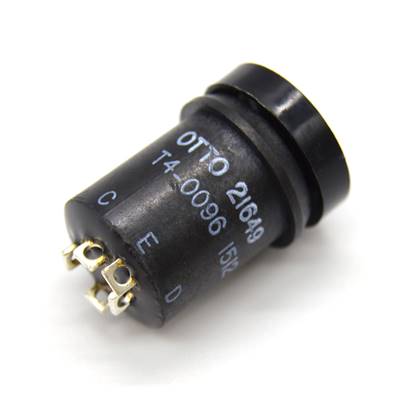

(Code: 60219)
Rocker switch Ray allen
66.83 €
Ray allen switch rocker

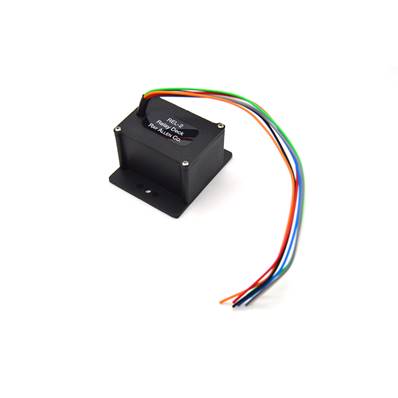

(Code: 60219-02)
120.23 €

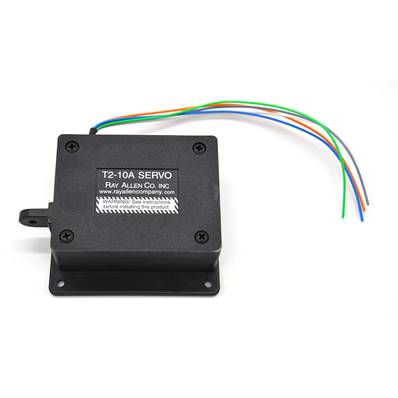

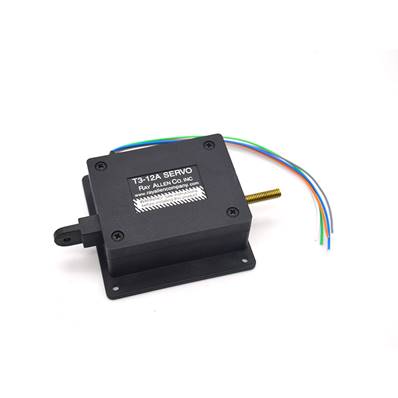

(Code: 60233-T3)
318.98 €

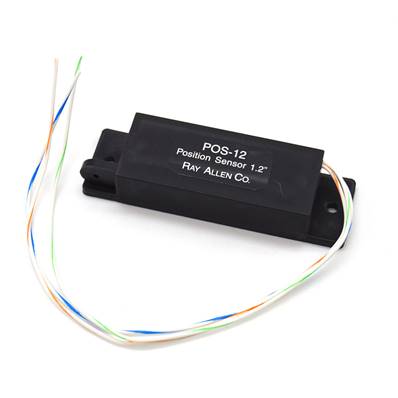

(Code: 60234)
'Pos-12 1.2'' position sensor'
72.77 €
Ray Allen position trim-pot – Combines with the position indicator for commands which don’t have 3 wires Ray Allen motor – 0 to 5 kg – Dimension: 69 x 19 x 13 mm – Stroke: 30 mn

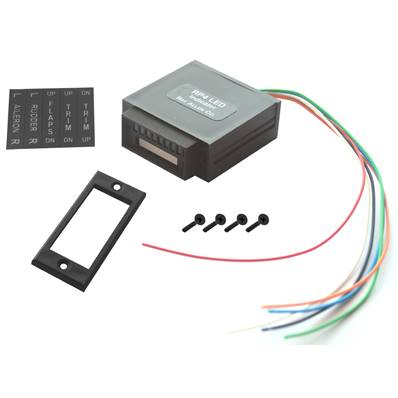

(Code: 60238)
Led position indic.trim Ray A.
223.04 €
LED indicator for trim motor or Ray Allen trim-pot, can be installed horizontally or vertically – Indicator dimension: 44 x 19 x 28mm

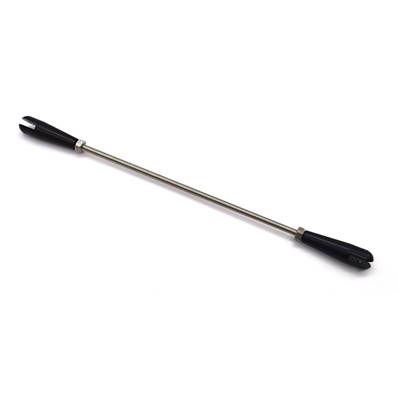

(Code: 60243)
Trim rod command Ray Allen
35.04 €
Ray Allen command trim rod
(Code: 60404-G1)
Stick grip G101
79.87 €
The Ray Allen G101 handle grip owns a button, so that it could be settled on a 25 mm tube. Provided with tube reduction spacer. Weight: 105g – Handle’s height: 120 mm
(Code: 60404-G5)
Stick grip G205
189.91 €
The Ray Allen G205 handle grip owns 5 buttons, to mount on a 25 mm tube. Provided with tube reduction spacer. Weight: 105g
(Code: 60404-M)
Foam handle grip
6.00 €
(Code: 60412-N)
Handle grip 5 buttons black
114.00 €
Other type of handle, different fabrication and made in Europe. 25 mm handle + adapter for a 20 mm handle.
(Code: 60412-R)
Handle grip 5 buttons red
114.00 €
Handle grip 5 red buttons – Other type of handle, different fabrication and made in Europe – 25 mm handle + adapter for a 20 mm handle
(Code: DE12-17W41)
549.40 €
Flap command cylinder
