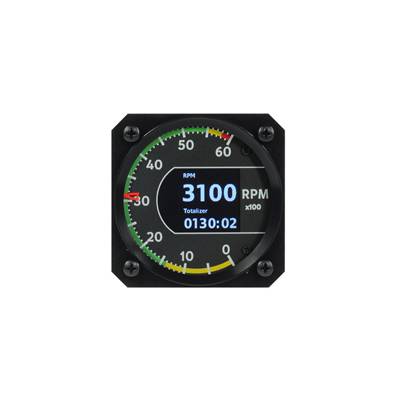

Tachometer

(Code: 62150-RP-03)
Compte tour moteur Kanardia
348.00 €
(Code: 60176)

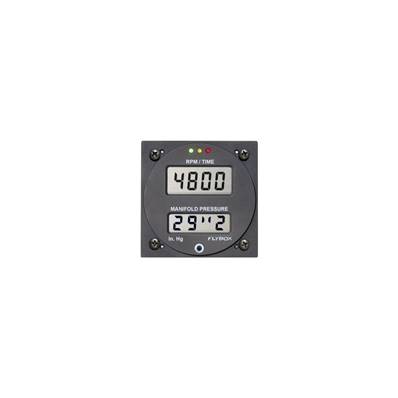

Power settings (RPM + MAP)
419.10 €
RPM indicator and Manifold pressure (80 mm). PS1 contains in an unique instrument, both a tachometer and a Manifold pressure, with two ample display, seeable in any requirement. PS1 disposes with every characteristics of the RPM indicator RT1: Flight time, with measure until 9h59min, able to recognize the take-off, available either during or after the flight. Seven informations are available while pushing the button : - Last flight duration – Max RPM reached by the motor during flight – Total motor functioning duration – Duration in which it operated in the “green zone” – Duration in which it operated in the “yellow zone” – Duration in which it operated in the “red zone” – MAX RPM reached during the engine life time. Available for 912/914 ROTAX motor and JABIRU. MAP with absolute measure. Measure range from 10 to 60 En.Hg, even for turbocharged motor. Accuracy: 1.5% - Technical specifications: - Standard installation 3 1/8’ (80 mm) – Dimensions: 82.5 x 85.2 x 45.8 mm – Weight: 230 gr – Power supply voltage: from 10 to 30 V – Consummation: 50 mA – Functioning temperature: -20 ~+70°C – Specific tachometer :- Functioning range: from 500 to 8000 laps per minute – Graduation: 10 laps / min – Accuracy: 0.2% - Tachometer, according to the model, for 912/914 ROTAX motor or JABIRU. Specific MAP: Pressure measure range: 10-60 en.Hg – Resolution: 0.1 En.Hg

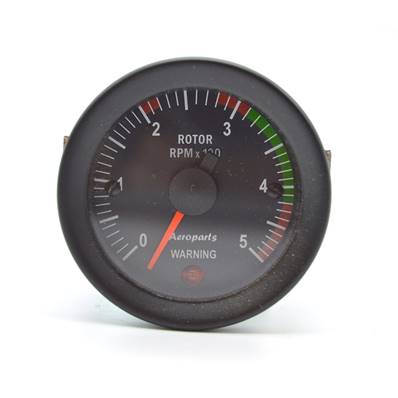

(Code: 61321)
195.50 €
RPM indicator for rotor fits to most of gyros or helicopters. For a Gyroplane, this instrument is as important as an anemometer. Measure range from 60 to 1500 tr/min. Built-in 65 x 50 mm. Net weight: 137 gr. Brut weight: 165 gr. Delivered with magnets.
(Code: 62019)
Sensor inducted 6 mm
34.91 €
Inductive captor for VDO RPM indicator. Works with VDO and digitals RPM indicators. Fits very weel to JABIRU motor. Dimension: 6.35 mm x 22 mm. Ό net, 28 UNF, 2A. Res 130O ±10%. Induct 12mH ±10% Pick 10V

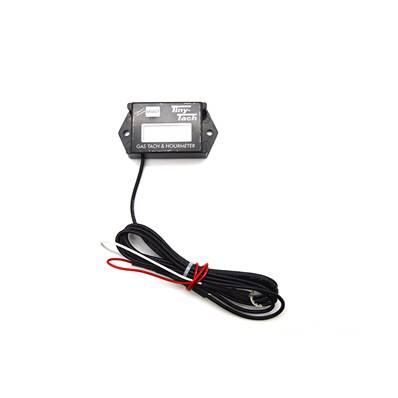

(Code: 62071-00)
Tachometer digital/cpt H universal
80.47 €
Digital RPM indicator / Hour meter tiny TACH universal, it possesses TINY-TACH 1C, 2C and 4C functions. Adjustable tool for 1 to 8 sparkles per revolution. Accuracy: Superior than 1% - Display magnitude: nearly 9 mm (2 or 4 figures) Using limit: -20° to 50°C – Weight: 100 gr – Dimensions: 75 (L) x 39 (l) x 20 mm (H) – Connection cable length: 1800 mm – Battery life time: nearly 5 years – Warranty: 30 days. The perfect motor instrument for paragliders and auxiliary motorization. Easy, economic and light mounting. The Tiny Tach is a RPM indicator really accurate and reliable. Reading on it is really easy. Its plugin and autonomic supply can’t create any short circuit and avoids every breakdown due to the apparel. The hour meter only works while the motor is functioning, so just the real on-time is counted. The display indicates the number of hour when the motor is stopped. While the motor is on, the system can be displayed. Plugin is really easy: - The red link has to be wrapped 3 or 4 times around a spark plug wire. – The white link must be connected to the mass motor. Motor example: 2 sparkles per tour (180°), electronic start-up motor: Rotax 447, 503, 582, 618, Zanzoterra MZ34, MZ201, Solo 210 Ducati and IDM, SImonini… 1 sparkle per tour (360°) start-up with platinum screw: Rotax 447, 462, 532, …

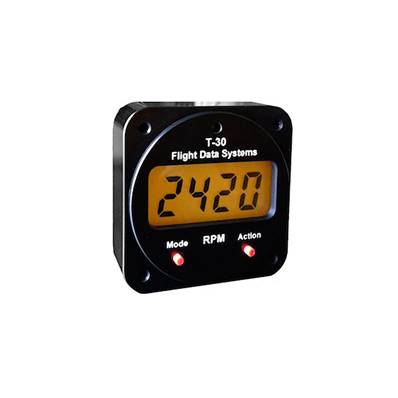

(Code: 62115)
Tachometer T30
281.78 €
T30 RPM indicators : work with double magnetos motor, electronic turn on, Rotax and Jabiru motor. Specifications: - double ignition control – Flight time recording (starts when the motor is up to 300 tours) – Motor hour counter – Orange backlit display with automatic brightness – 12 – 28 V – Diam 57 mm fixed with 4 screws – 75 gr
(Code: 62116)
Tachometer VDO 4T 4000 tr D.80
145.26 €
4000 tr/min RPM indicator - Diam 80 mm - The information comes from the classic ignition system (coil) and alternator - Depth: 68 mm

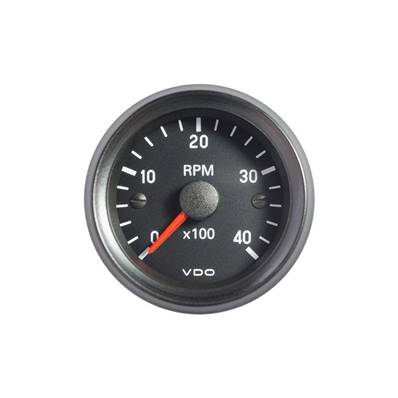

(Code: 62117)
Tachometer VDO 4T 4000tr D.52
150.24 €
4001 tr/min RPM indicator - Diam 52 mm - The information comes from the classic ignition system (coil) and alternator - Depth: 68 mm
(Code: 62124)

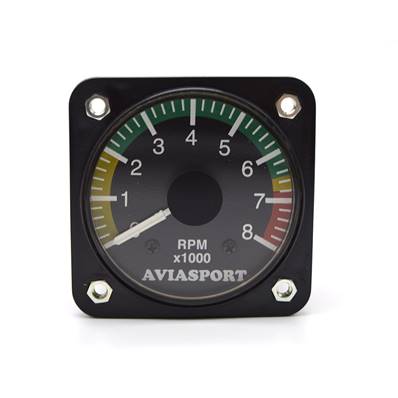

RPM indicator double firing AVIA D5
130.00 €
Double ignition RPM indicator AVIA SPORT for the range ROTAX 447, 503 and 582, fits on SIMONINI motor equipped with a DUCATI ignition. Standard mounting diam 57 mm.
(Code: 62127-57)

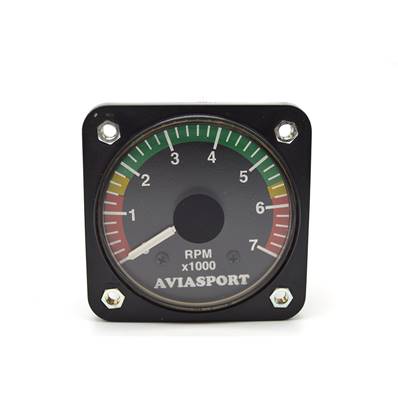

Tachometer AVIA 912 D.57
150.00 €
Aviasport Cpt 912 diam 57 mm
(Code: 62131-503)
Multifunction RPM / Timer for Rotax
227.40 €
Multifunction RPM Indicator / Hour meter RT1. The RT1 is a digital multifunction counter, easy to use which provides a four figures LCD screen. In the same time, this is a motor RPM indicator, chronometer and a full hour counter easy to use. – Four figures LCD screen in order to know accurately your engine motor tours and the flight time, and own 3 color LED to see instantly this one system. RT1 is available for motor ROTAX 447 / 503 / 582 / 912 / 914, SIMONINI and JABIRU. The RT1-JABIRU works with the usual inductive sensor. Characteristics: - Four figures LCD display – Comprises a total of 3 LED color – Anodized aluminum box – Standard mounting 2’ Ό 57 mm – Supply tension: 10~30V – Consumption: 40 mA – Functioning range: from 500 to 8000 tours / min – Accuracy: 0.02% - Weight: 103 gr
(Code: 62131-912)
Multifunction RPM / Timer for Rotax
227.40 €
Multifunction RPM Indicator / Hour meter RT1. The RT1 is a digital multifunction counter, easy to use which provides a four figures LCD screen. In the same time, this is a motor RPM indicator, chronometer and a full hour counter easy to use. – Four figures LCD screen in order to know accurately your engine motor tours and the flight time, and own 3 color LED to see instantly this one system. RT1 is available for motor ROTAX 447 / 503 / 582 / 912 / 914, SIMONINI and JABIRU. The RT1-JABIRU works with the usual inductive sensor. Characteristics: - Four figures LCD display – Comprises a total of 3 LED color – Anodized aluminum box – Standard mounting 2’ Ό 57 mm – Supply tension: 10~30V – Consumption: 40 mA – Functioning range: from 500 to 8000 tours / min – Accuracy: 0.02% - Weight: 103 gr

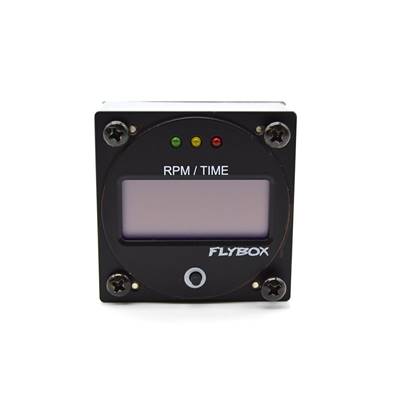

(Code: 62131-JAB)
Multifunction RPM / Timer for Jabir
227.40 €
Multifunction RPM Indicator / Hour meter RT1. The RT1 is a digital multifunction counter, easy to use which provides a four figures LCD screen. In the same time, this is a motor RPM indicator, chronometer and a full hour counter easy to use. – Four figures LCD screen in order to know accurately your engine motor tours and the flight time, and own 3 color LED to see instantly this one system. RT1 is available for motor ROTAX 447 / 503 / 582 / 912 / 914, SIMONINI and JABIRU. The RT1-JABIRU works with the usual inductive sensor. Characteristics: - Four figures LCD display – Comprises a total of 3 LED color – Anodized aluminum box – Standard mounting 2’ Ό 57 mm – Supply tension: 10~30V – Consumption: 40 mA – Functioning range: from 500 to 8000 tours / min – Accuracy: 0.02% - Weight: 103 gr
(Code: 62131-SIM)
Multifunction RPM / Timer for Simon
216.00 €
Multifunction RPM Indicator / Hour meter RT1. The RT1 is a digital multifunction counter, easy to use which provides a four figures LCD screen. In the same time, this is a motor RPM indicator, chronometer and a full hour counter easy to use. – Four figures LCD screen in order to know accurately your engine motor tours and the flight time, and own 3 color LED to see instantly this one system. RT1 is available for motor ROTAX 447 / 503 / 582 / 912 / 914, SIMONINI and JABIRU. The RT1-JABIRU works with the usual inductive sensor. Characteristics: - Four figures LCD display – Comprises a total of 3 LED color – Anodized aluminum box – Standard mounting 2’ Ό 57 mm – Supply tension: 10~30V – Consumption: 40 mA – Functioning range: from 500 to 8000 tours / min – Accuracy: 0.02% - Weight: 103 gr
(Code: 62132-00)
RT1 - Multifunction RPM / Timer
229.20 €
Rotor RPM indicator and hour meter RT 57 mm. The RT2 is a multifunctional digital counting easy to use provided with a four figures LCD screen, similar conception than the RT 1. This is, in the same time, a rotor RPM indicator, chronometer and a rotor full hour counter easy to use. – Four figures LCD screen to know accurately your rotor revolution and its functioning time, and has 3 color LED to see instantly the system – Standard mounting 2’ Ό (57mm) – Supply tension: 10~30V – Consumption: 40 mA – Functioning range: from 200 to 800 revolutions/min – Weight: 103gr
(Code: 62132-01)

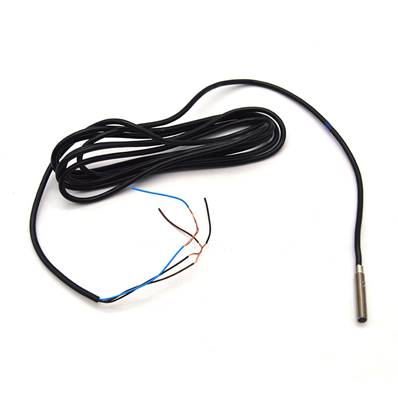

Probe for tachometer rotor RT1
74.18 €
Sensor for rotor RPM indicator. The RT2 is a multifunctional digital counter easy to use, disposing of a LCD four figures screen, exact same conception than the RT1. There is, in the same time, a rotor revolution counter, a chronometer and a rotor full hour meter easy to use. – Four figures LCD screen to know accurately your rotor revolutions and its functioning time, with3 color LED in order to ess instantly its system. Standard 2’ Ό (57 mm) – Supply tension: 10~30V – Consumption: 40 mA – Functioning range: from 200 to 800 revolutions/ min – Weight: 103gr.
(Code: 62135)
Tachometer VDO 3T with hourmet
250.56 €
VDO programmable RPM indicator + Hour meter 3000 revolutions / min. Continental / Lycommin. The information comes from the ignition system or the alternator in the first case. In the second case, the RPM indicator works with Hall effects, inductive sensors or blocked oscillators. The motor system is indicated by the needle, functioning hours by the liquid crystals numerical display. Also available as 3000 revolutions per minute and only on diam 80 mm. Depth: 68 mm – Weight: 233 gr

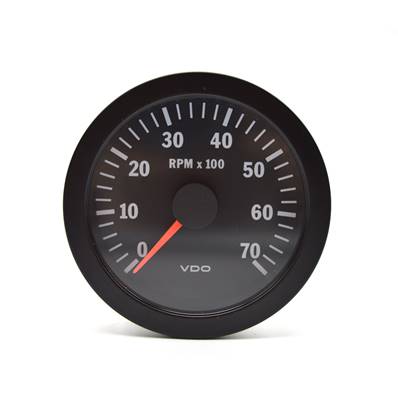

(Code: 62147)
Tachometer VDO 4T 7000 tr
182.52 €
RPM indicator 7000 revolutions / min. The information comes from the classic ignition system and the alternator. Diam: 80 mm – Depth: 68 mm

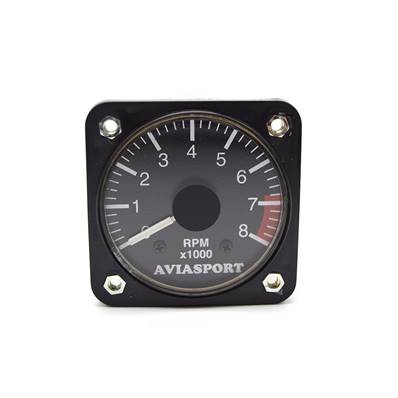

(Code: 62153)
RPM indicator AVIA simple firing
116.80 €
Avia RPM indicator simple ignition. AVIASPORT RPM indicator for the range ROTAX 2 times simple ignition Bosh 462, 532. Standard mounting diam 57 mm – Weight: 120 g
(Code: 62181)
Tachometer + hourmeter program
275.26 €
Programmable VDO RPM indicator + hour meter 6000 revolutions / min, for Rotax 912. The information comes from the ignition system or from the alternator in the first case. In the second case, the RPM indicator also works with Hall effects and inductive sensors or blocked oscillators. The motor system is indicated by a needle, functioning hour and the liquid crystal numeric display. Also available 3000 revolutions / min and only as diam 80 mm – Depth 68 mm – Weight 234 gr

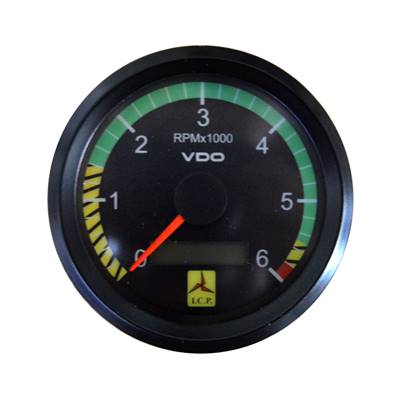

(Code: 62181-00)
VDO tachometer Rotax 912 / ICP
198.80 €
Rotax 912 RPM indicator (6000 tr/min) + Hour meter VDO/ICP with internal bow of color. Already programed, also works with Verner motor – Diam 80 mm – Weight: 241 g - Each
(Code: 62182)
Tachometer VDO 7000 tr
160.70 €
VDO RPM indicator 8000 tr - 12 V - Diam 52 mm

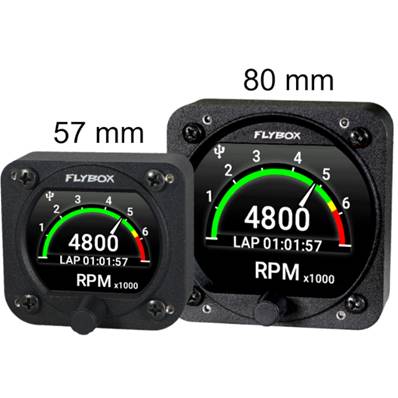

(Code: 62200-08)
Compte-tours Ø57 mm - OMNIA
291.60 €
(-7.00%) 271.19 €

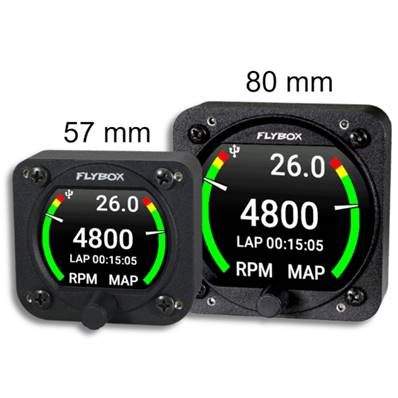

(Code: 62200-09)
Compte-tours + MAP Ø 57 mm - OMNIA
320.40 €
(-7.00%) 297.97 €

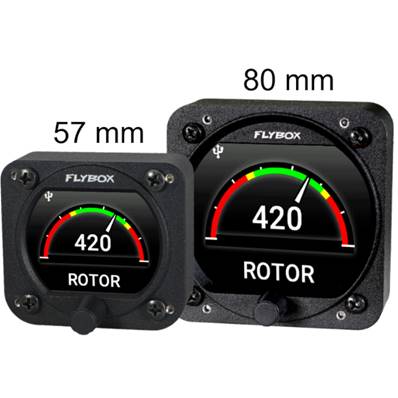

(Code: 62200-11)
Compte-tours Rotor Ø57 mm - OMNIA
306.00 €
(-7.00%) 284.58 €
(Code: 62240-52)
Tachometer 912- 7000 rev / min 52 m
135.60 €
Tachometer 7000tr/min diameter 52mm for Rotax 912. With arlam at 5800rpm. the needle movement if cushioning with silicon oil.

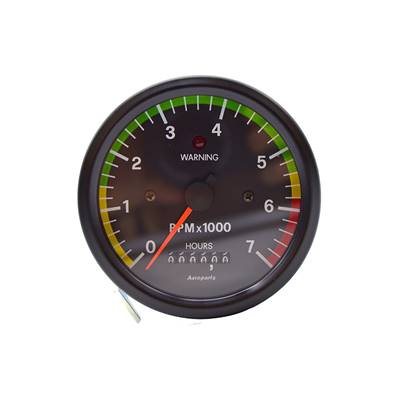

(Code: 62240-80)
Tachometer hour meter 912 + 80 mm
165.70 €
RPM indicator with hour meter – Diam 80 mm for Rotax 912 with alarm 5800 tr/min. The needle motion is damped by silicon oil.
