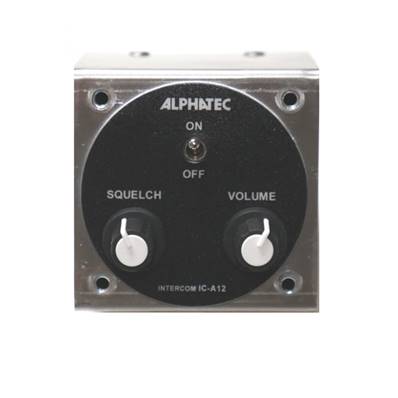

Intercom IC-A12. On board interphone for ULM and light aircraft with voice triggering, integrable on diam 57 mm, standard civil aviation in its basic version, or standard ULM compatible with former headsets PRO and PRO2 in the IC-A12P version. CMS technology (components mounted on surface). 12V supply. Voice triggering and settable volume on its front. It is possible to delete entirely the voice triggering. Every interface can be connected on the back of the box through snap-on professional plugs (diam 10mm), with foolproof device. Delivered with a supply cable 12V on SubD9 plug. Box dimensions (aluminium): H. 64 mm x L. 64 mm x P. 75 mm. Embedding depth with connected cables : 10 mm – Weight : 120 gr – Weight with cable SubD : 150 gr
On board intercom for ULM and light aircraft with voice triggering, integrable if diam 57 mm, civil aviation standard. CMS technology (components mounted on surface). Supply through the 12V on board. Many link possibility: - VHF radio aviation with automatic passenger micro attenuation when the pilots emits – UHF radio or second VHF radio (free flight, …) – GSM phone through BTA11 adapter sold separately – Music entrance with automatic attenuation when the pilot or the passenger speak, or a VHF message has been received – Entry IN/OUT supplementary – Noise killer numeric sound reducer – Voice triggering and interphone volume settable. Possibility to delete all the voice triggering. Possibility to delete the music entry and to replace it with a switch. Allows isolating the passenger with a switch, to make communication with the air center easier. Connection of every interfaces at the back of the box with clip-on professionals plugs diam 10 mm with foolproof device. Delivered with 12V supply cable on SubD 9 pins plug, with alternating entries. Box dimension: H. 64mm x L. 64 mm x P. 75 mm. Embedding depth with connected cables: 100 mm – Weight: 155gr – Weight with SubD cable: 185 gr – Precise what kind of radio

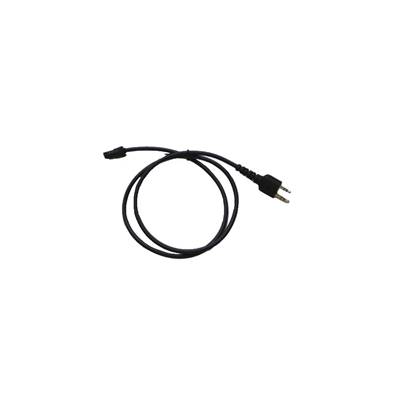

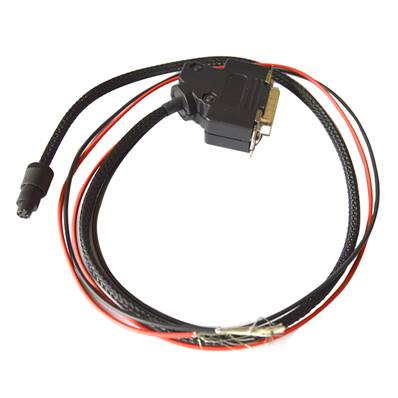

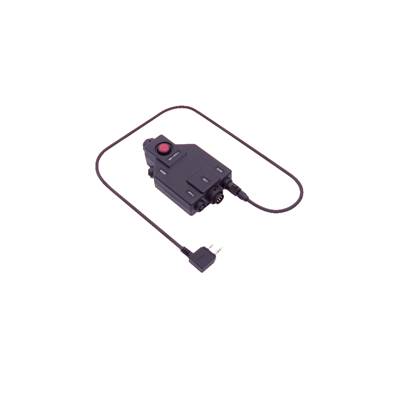

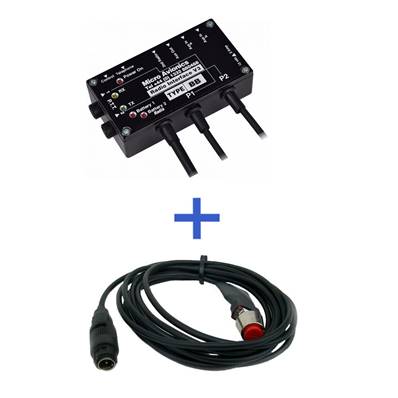

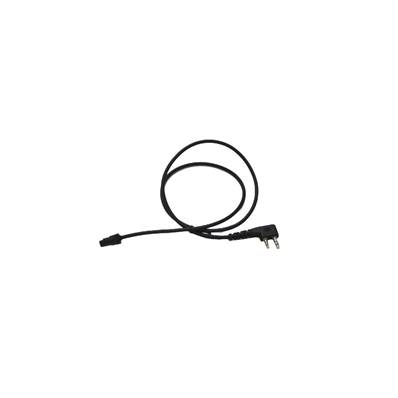

Interface radio + cable. The radio interface can be used to plug one or two headsets micro system to a radio and another audio device. When the interface is used with two headsets, the whole creates an intercom and radio system autonomous which adapts to many situation. The radio interface accepts exchangeable radio cable to plug to many radio. Each kind of cable provides the correct physic connection to a radio and automatically configures the interface adequate electronic operation. By choosing and plugging the appropriate radio cable, the interface can be used with every radio. The interface is provided with an integrated emission button to control radio emission. There also is another emission button in order to plug an additional button. The interface emits an auditory “advertisement tonality” in the headset which signals when every emission button is pushed or released. In addition to the main radio connection, the interface can be plugged at the same time on most of audio devices like cellphones, music device and sound or video recording device. To plug on professional recording device, the interface provides a “Microphone” and “Line” output. Every sounds heard in the headset can be recorded using this method. While using, the interface controls the radio and automatically reduces the sound volume during transmission and radio reception. This characteristic makes the radio as a priority according to phone or music entry. A deferred buffer effect maintains the audio muted while radio exchanges and receptions brakes are made. The interface has an integrated belt clip and can be settled permanently with Velcro, screws, clips or serflex. Please precise the model of the radio while ordering

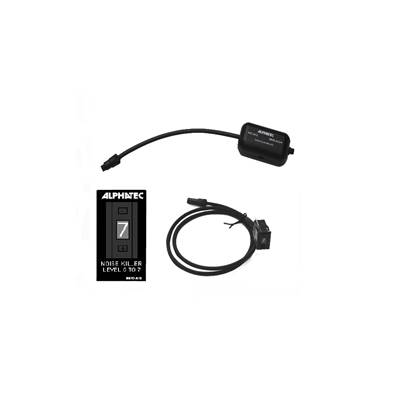

8 stages numeric filter to reduce sound and to delete ambient sound (from -9 dB to -35 dB). Made with last technologies, the efficiency of this filter is amazing, it deletes every repetitive sound we can find in the pilot and the passenger environment (engine, propeller, wind, …) making every communication easier. It can be activated or disabled quickly with a IC-A13 switch. With the optional rod NKR-A13 and a coder embeddable to the dashboard wheel, we can modify the intensity from 0 to 7, according to the ambient sound every engine makes (without this remote the sound killer is settled on its max: -35 dB°. It connects on the back of the IC-A13. Weight: 30 gr
Rod to plug a pilot or passenger helmet, with base plug to embed to the dashboard, mono jack version 6,35 mm for every new Titane or Titane 2 helmet mono jack. NB: Those rods are not compatible with former mono jackhelmets 6,35 mm Pro and Pro 2.

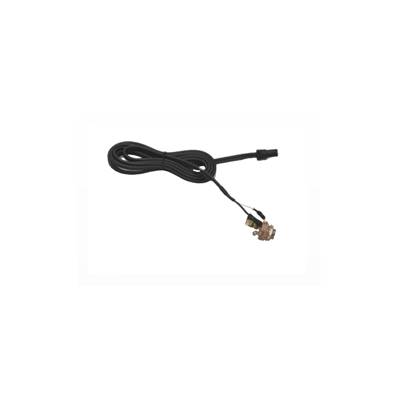

Rode to plug a pilot or passenger headset, integrated in a box to fixate on a tube, mono jack version 6,35 mm for every new Titane or Titane 2 mono jack new headset. NB: those rods are not compatible with old 6,35 mm mono jack Pro and Pro 2 headset.

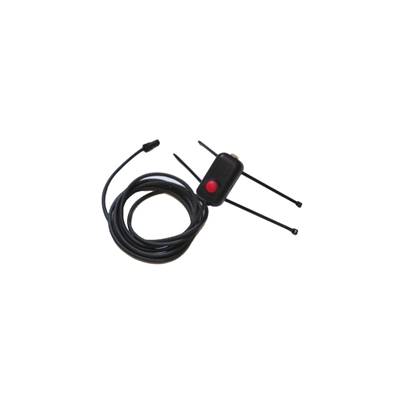

Rode to plug a pilot or passenger headset, integrated in a box to fixate on a tube with a waterproof PTT button, mono jack version 6,35 mm for every new Titane or Titane 2 mono jack new headset. NB: those rods are not compatible with old 6,35 mm mono jack Pro and Pro 2 headset.
Music rode to connect the IC-A13 intercom to a MP3 player, smartphone or else. Delivered with a 3,5 mm jack plus. Length: 1m
TO link the IC-A13 intercom to a second audio input, non-attenuated by the interphone or the aviation VHF reception (GPS, messages or voice alerts of the dashboard…) and/or record every communications on board. It is provided with red and black female RCA connectors. Length: 80 cm
