Flowmeter

(Code: 62200-01)
Fuel computer Ø57 mm - OMNIA
334.80 €
(-7.00%) 311.36 €
(Code: 62105)

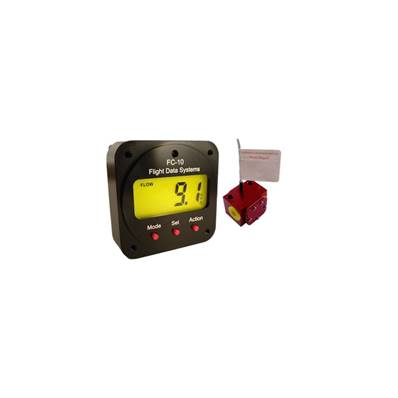

Flight data FC-10 sgl engine
612.64 €
FC-10 econometer is compatible with carburetor or injections mono-motor and bi-motor devices (for the version with 2 sensors). The sensor allows a measure for rates from 2.3 to 265 liters per hour with a 100 psi (nearly 7 bars) high pressure. It includes a NMEA output (3 wires) to plug the GPS, which allow to calculate the needed fuel and the flight time to reach the next checkpoint, the distance to travel again… Possibility to select units displayed between gallons and liters then nautical miles, miles and kilometers. Orange backlit screen with light intensity automatic setting. 57 mm diameter device which functions with 12 – 28 V. Whole weight: 400 gr. The screen successively displays (Mode button) – The rate – Used fuel quantity – Available fuel quantity – Distance of flight time remaining – Fuel quantity needed until the next checkpoint (GPS) – Average fuel consumption. For motor which include a fuel feedback (ex: Rotax 912), the device accuracy can be increased by installing a second sensor. Sold with a sensor
(Code: 62105-01)

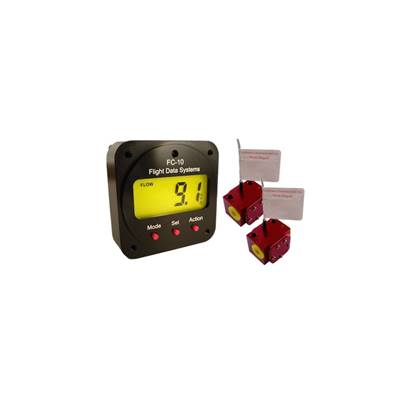

Flight data FC-10 sgl engine
881.15 €
FC-10 econometer is compatible with carburetor or injections mono-motor and bi-motor devices (for the version with 2 sensors). The sensor allows a measure for rates from 2.3 to 265 liters per hour with a 100 psi (nearly 7 bars) high pressure. It includes a NMEA output (3 wires) to plug the GPS, which allow to calculate the needed fuel and the flight time to reach the next checkpoint, the distance to travel again… Possibility to select units displayed between gallons and liters then nautical miles, miles and kilometers. Orange backlit screen with light intensity automatic setting. 57 mm diameter device which functions with 12 – 28 V. Whole weight: 400 gr. The screen successively displays (Mode button) – The rate – Used fuel quantity – Available fuel quantity – Distance of flight time remaining – Fuel quantity needed until the next checkpoint (GPS) – Average fuel consumption. For motor which include a fuel feedback (ex: Rotax 912), the device accuracy can be increased by installing a second sensor. Sold with 2 sensors
(Code: 62105-03)

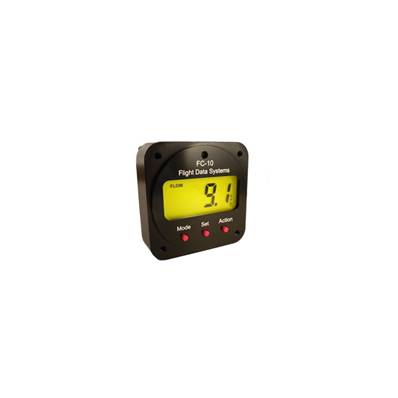

Flight data FC-10 sgl engine
416.44 €
FC-10 econometer is compatible with carburetor or injections mono-motor and bi-motor devices (for the version with 2 sensors). Possibility to select units displayed between gallons and liters then nautical miles, miles and kilometers. Orange backlit screen with light intensity automatic setting. 57 mm diameter device which functions with 12 – 28 V. Whole weight: 400 gr. The screen successively displays (Mode button) – The rate – Used fuel quantity – Available fuel quantity – Distance of flight time remaining – Fuel quantity needed until the next checkpoint (GPS) – Average fuel consumption. For motor which include a fuel feedback (ex: Rotax 912), the device accuracy can be increased by installing a second sensor. Send whithout Sensor (62105-02)
(Code: 62298-FC)

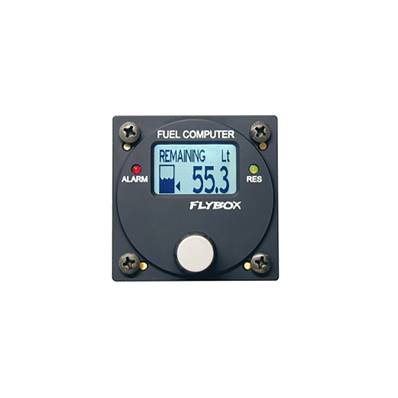

Fuel computer FC1
457.20 €
The FC1 FUEL COMPUTER allows to always have an under control fuel consumption. It automatically calculates consumptions, the autonomy according to the actual consumption expressed in flyable hours and the quantity of fuel remained after landing. It allows programming the quantity of fuel or the autonomy under which the alarm is activated (flashing red LED) and acoustic (audio output through the interphone). Main characteristics: Instant measures and viewing: Instant hour consumption – Remained fuel in the tank – Consumed fuel since the start-up – If connected to a GPS you can: 5) Distance autonomy 6) Remained fuel at the end of the flight – Yellow LED to indicate the end of the tank – Red LED to indicate the alarm – Audio output for acoustic warning. Selectable measure unit between liters and gallons, and between kilometers and nautical miles. Automatically scan several indications, with the possibility to choose the displayed indication and to delete other one. Balance warning function between tanks. Auto calibration of the flux meter sensor. Backlit graphic LCD screen, anti-reflection glass. Control and programming through the panel encrypted. Installation standard 2 ¼’’ (57 mm). Anodized aluminum box. Dimensions: 60 x 60 mm – Depth: 56.6 mm – Weight: 175g (without sensor) – Functioning temperature: -10 to + 70°C – Supply tension: 10 to 30 V DC – Consumption: 45 mA (backlit off) 75 mA (backlit on) Audio output: 2 Vpp (Charge 10 K Ohm) GPS input: Standard RS-232, NMEA form. Resolution: Hour consumption: 0.1L per hour – Remaining fuel: 0.1L – Flux meter sensor certified
(Code: 62105-02)

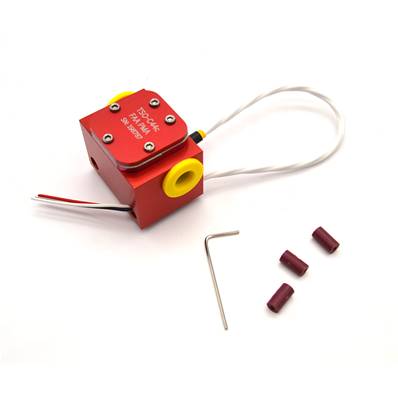

Fuel Flow sensor
280.00 €
Supplementary econometer sensor FC
(Code: 62105-04)

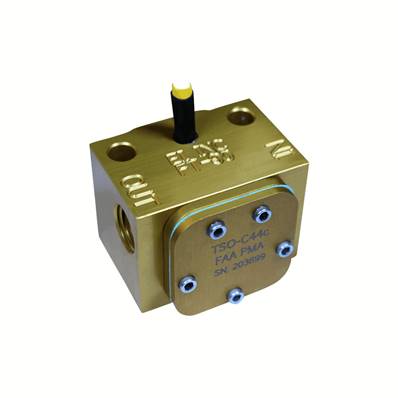

Fuel Flow sensor
455.95 €
Supplementary econometer sensor FC
(Code: 62298-SF)
Probe FLOSCAN
280.00 €
