Omnia MAP

Flybox
(Code: 62210-05-57)
In Stock
(2 Item(s) In Stock)
Diamètre :
418.80 €
200g
DESCRIPTION
OVERVIEW
SPECIFICITIES

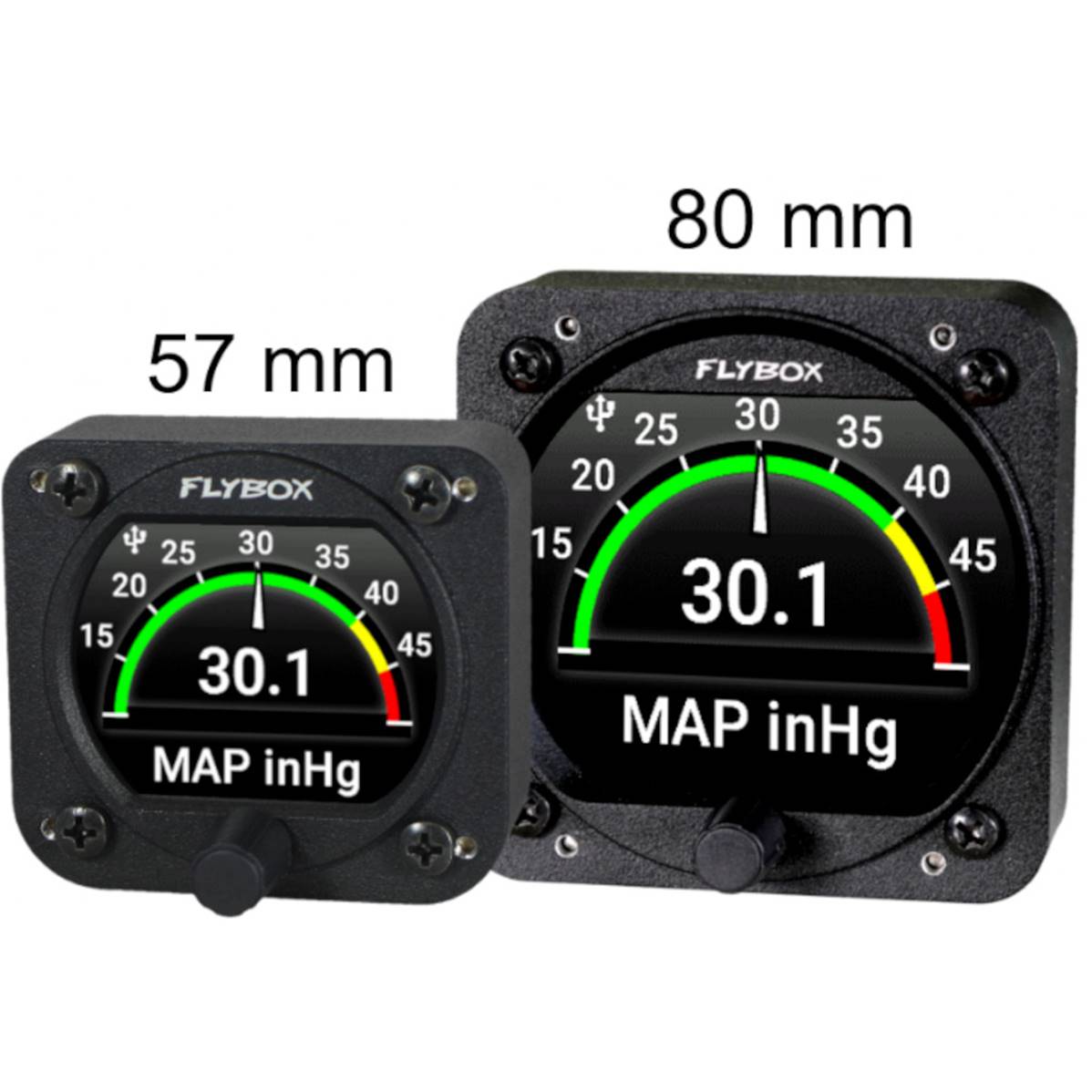

Omnia MAP is a compact and reliable instrument that integrates a precise and calibrated sensor. The instrument is fully customizable to fit almost any engine. With a maximum measurable of 80 inHg, can also be used for the most powerful turbocharged engines.

All the components of the Omnia family are equipped with a state-of-the-art, highly visible display, a powerful 32 bit microcontroller and the latest generation of solid state sensors and components to ensure reliability and accuracy over time.
Omnia MAP can be interfaced with the Rotax engines "i" series through the CAN bus.

Up to 16 Omnia family instruments can be connected in cluster to form a communication network, making some data exchange operations simpler.

Indication:

  • Manifold pressure

Interfaces:

  • Knob with pushbutton
  • 2 CAN bus
  • Light Sensor input
  • USB 2.0 port
  • Embedded fuel resistant MAP sensor
  • Can be connected in cluster with other Omnia instruments

Manufacturing:

  • Rugged case milled from solid aluminium
  • Powder-painted
  • 100% manufactured and tested with automatic processes

Functions:

  • Manual or Automatic Backlight dimmer
  • Easy software updating through the USB port

Technical specifications:

  • 2.4" color graphic LCD 320x240 pixels with 1000 nits backlight.
  • Standard mounting 2-1/4” 57mm and 3-1/8” 80mm.
  • Powder painted aluminium case.
  • Dimensions: 68x62x35mm (57), 85x85x40mm (80).
  • Weight: 140g. (57), 230g. (80)
  • MAP sensor range: 0-60 inHg
  • Supply voltage: 10 ~ 30 V=.
  • Supply current: 60mA (57), 135mA (80).
  • 1 alarm output 300mA
  • Operating temperature range: -20 ~ +70°C.
  • Humidity: 90% max
