Radio TRIG TY 91

Trig
(Code: 81239-00)
Orders only

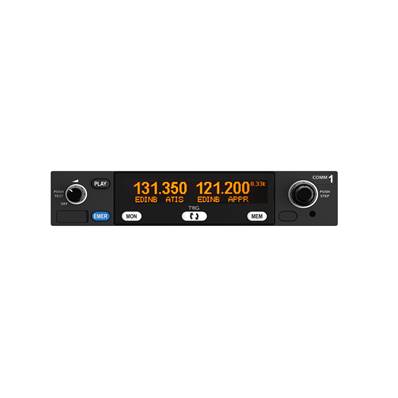

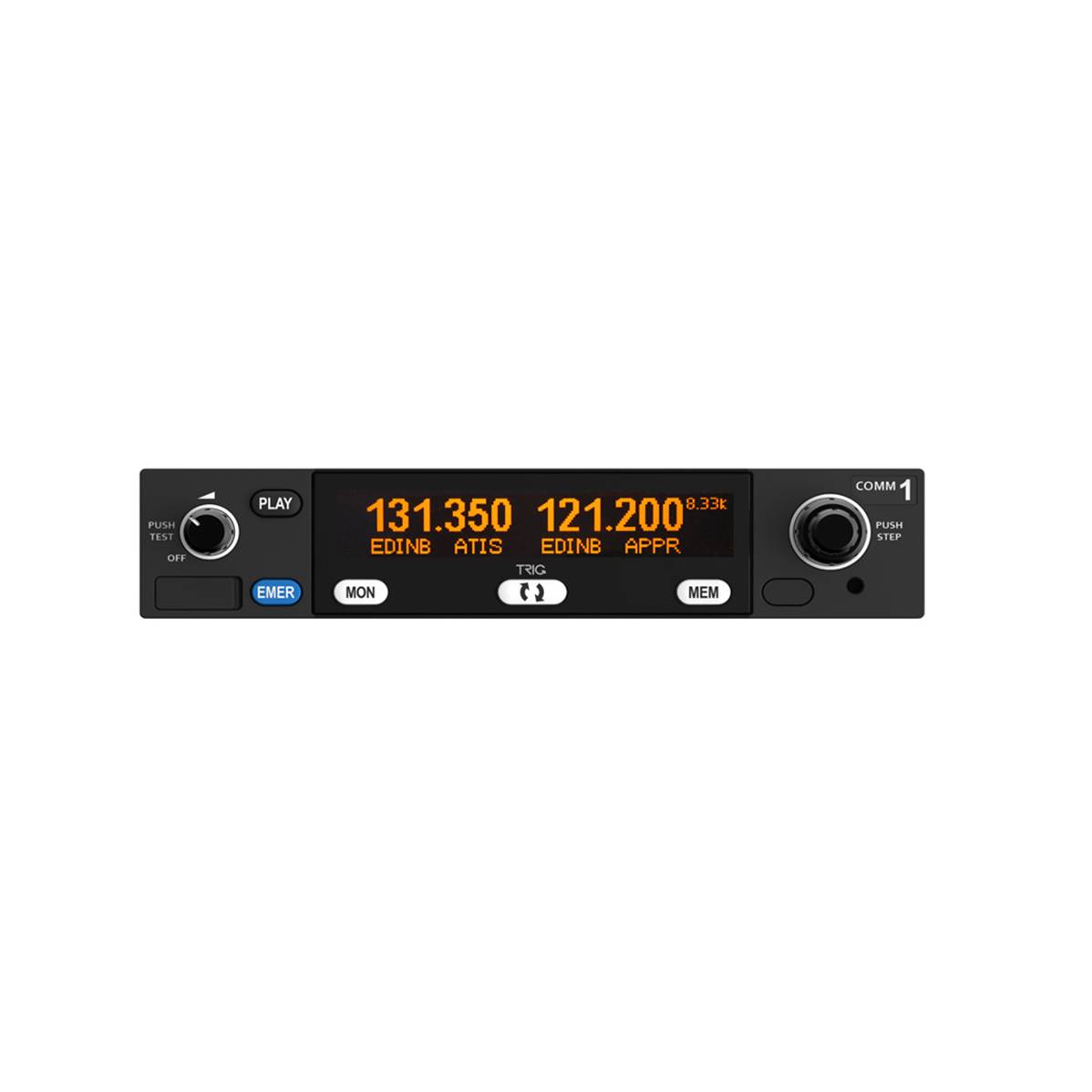

The TY96 transceiver radio sets a new standard in 25 kHz and 8.33 kHz radio design. Combining exceptional quality with outstanding performance, this radio is a true technological gem.
3,048.00 €
2,834.64 €
-7.00%
1400g
TRIG
DESCRIPTION
SPECIFICATIONS
Combining exceptional quality with outstanding performance, the TY96 radio sets a new standard in 25kHz and 8.33kHz radio design.

Very light and with a height of only 33mm the TY96 radio saves a lot of space, while offering innovative and practical functions.

With 10 watts of power, the TY96 radio is suitable for general use.

Through a clear and bright display, the TY96 radio shows the main and secondary frequencies as well as ICAO or customized airfield identifiers.

Thanks to the "push step" button, it is possible to quickly switch from 8.33kHz to 25kHz.

It is also possible to control two frequencies at the same time thanks to the dual watch mode.
With the TY96 radio it is possible to listen again to the last radio transmission thanks to the "Repeat" function.

In a situation that can be stressful, simply press the emergency button and the radio is automatically tuned to 121.5kMz, along with the microphone and volume.

The TY96 radio features a two-seat intercom with auxiliary inputs for stereo music playback and audible warnings.

The radio can be connected to a GPS (SL40 protocol) which automatically displays the frequencies as you fly.

Finally, it is possible to load the airfield database using a USB port.
Type
Certified 8,33kHz et 25kHz
Certification ETSO 2C128, 2C169a, TSO-C128a, TSO-C169a
Conformity ED-23C, ED-67, DO-186B, DO-207, DO-178B Level B, DO-254 Level C, DO-160G
Supply voltage (DC) 11 - 33 V
Typical power consumption in receive mode
To 14 V - 265 mA
Power rating of the transmitter 10W
Operating temperature
-20°C to +55°C
Cooling conditions
Fan not required
Weight 0.95kg
Panel dimensions H 33 x W 159mm
Depth of embedding in the panel 230mm
