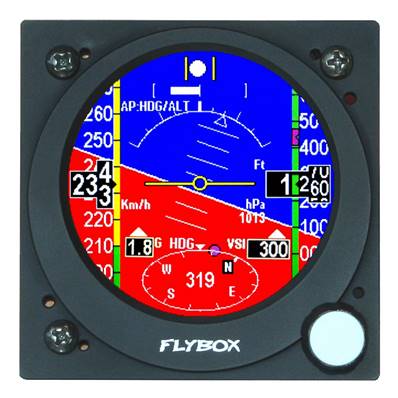

Flybox presents 'Oblò P/A’ : attitude indicator and principal flight data in a 80 mm diameter instrument (3.125’) compact and light with automatic pilot. PA because it integrates the ability to connect an automatic pilot (vertical or horizontal interface and servos sold separately), function not predicted on the standard Oblò which will need activation key. Ref: 62078-04. The Oblò PA, as the standard, is easy to use, settles in 80 mm diam for a win of place with a 300g ultralight weight. This instrument still combines principals flight tools and still is practical to use, no problem with the brightness and the visibility of the dial in the sun. The device is regularly improved with updates, most of them are free, by USB connection. Principal flight characteristics: Artificial horizon – Km/h or knots anemometer – Meter or ft altimeter – G meter variometer – Compass and GPS tracking – Compass – Atmospheric pressure in InHg and hPa – Bead / Turn coordinator – Technical characteristics: Dimensions: 83 x 83 x 61 mm – Weight: 300g – Functioning temperature: -20~+70°C – Functioning tension: 10 ~20 VDC – Supply power: 0.26A – D-SUB 15 connectors for supply – Brightness: 1000 lights, USB port setting for software updates – Communication Port CAN and RS232. Plugin cable for Oblò allows connecting the supply system, GPS and USB. Ref: 62078-03. Sold separately – Vertical automatic pilot interface Ref: 62078-05 or horizontal Ref: 62078-06 and digital servo Ref 62078-07. Sold separately. Video: tests to realize on the ground to settle your Oblò.
Horizontal lever gauge – Diam 70 mm – Interior : 40 mm – Length : 300 mm – Leverarm in the tank: 250 mm maxi. For flat tank with a round float – Weight: 120g – The gauge can be shorted in order to adapt it to your needs and to use the course.
Intercom IC-A12. On board interphone for ULM and light aircraft with voice triggering, integrable on diam 57 mm, standard civil aviation in its basic version, or standard ULM compatible with former headsets PRO and PRO2 in the IC-A12P version. CMS technology (components mounted on surface). 12V supply. Voice triggering and settable volume on its front. It is possible to delete entirely the voice triggering. Every interface can be connected on the back of the box through snap-on professional plugs (diam 10mm), with foolproof device. Delivered with a supply cable 12V on SubD9 plug. Box dimensions (aluminium): H. 64 mm x L. 64 mm x P. 75 mm. Embedding depth with connected cables : 10 mm – Weight : 120 gr – Weight with cable SubD : 150 gr

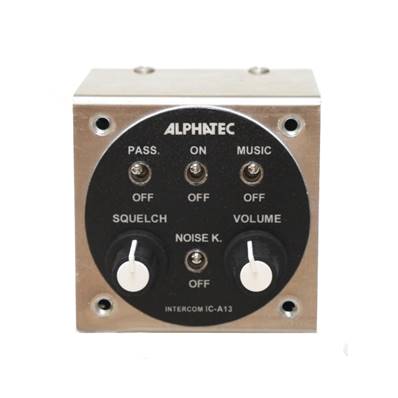

On board intercom for ULM and light aircraft with voice triggering, integrable if diam 57 mm, civil aviation standard. CMS technology (components mounted on surface). Supply through the 12V on board. Many link possibility: - VHF radio aviation with automatic passenger micro attenuation when the pilots emits – UHF radio or second VHF radio (free flight, …) – GSM phone through BTA11 adapter sold separately – Music entrance with automatic attenuation when the pilot or the passenger speak, or a VHF message has been received – Entry IN/OUT supplementary – Noise killer numeric sound reducer – Voice triggering and interphone volume settable. Possibility to delete all the voice triggering. Possibility to delete the music entry and to replace it with a switch. Allows isolating the passenger with a switch, to make communication with the air center easier. Connection of every interfaces at the back of the box with clip-on professionals plugs diam 10 mm with foolproof device. Delivered with 12V supply cable on SubD 9 pins plug, with alternating entries. Box dimension: H. 64mm x L. 64 mm x P. 75 mm. Embedding depth with connected cables: 100 mm – Weight: 155gr – Weight with SubD cable: 185 gr – Precise what kind of radio
