Aluminum rivets

ALUMINUM RIVETS ( AD )

ALUMINUM RIVETS ( AK )

OTHER RIVETS

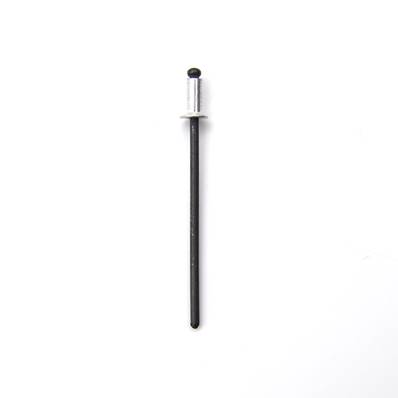

ALUMINUM RIVETS

Standard 'POP' rivets 'IMEX' waterproof type

Rivet : Aluminium

Mandrin : Steel

Alloy 4,5 - 5,5 Mg

Following BS3L58

Melting temperature : 600°C

References	Code	D x L ⌀ Rivet x length mm	Max. thickness flat-head crimping	H diam. head	P Top of head	M diam. mandrel	Breaking loads per rivet in shear / tension		⌀ drilling
30237	AD 3206	3,2 x 6	2	6 mm	1,05 mm	1,63 mm	1070 N	1245 N	3,3
30232	AD 3208	3,2 x 8	3,5
30234	AD 3210	3,2 x 10	5,5
30262	AD 3212	3,2 x 12	8
30236	AD 4008	4 x 8	3,5	8 mm	1,45 mm	2,18 mm	1710 N	2240 N	4,1
30264	AD 4010	4 x 10	5
30230	AD 4012	4 x 12	8
30265	AD 4015	4 x 15	10,5
30231	AD 4808	4,8 x 8	3	9,5 mm	1,75 mm	2,64 mm	2230 N	3070 N	4,9
30233	AD 4810	4,8 x 10	5
30235	AD 4812	4,8 x 12	7
30266	AD 4814	4,8 x 14	9
30267	AD 4816	4,8 x 16	11
30288	AD 4818	4,8 x 18	13
30268	AD 4821	4,8 x 21	16
30269	AD 4825	4,8 x 25	20
30287	AD 6412	6,4 x 12	6	12 mm	2,5 mm	3,7 mm	3950 N	5000 N	6,5
30263	AD 6416	6,4 x 16	8	12 mm	2,5 mm	3,7 mm	3950 N	5000 N	6,5

References	Code	D x L ⌀ Rivet x length mm	Max. thickness flat-head crimping	H diam. head	P Top of head	M diam. mandrel	Breaking loads per rivet in shear / tension		⌀ drilling
30250	AK 3207	3,2 x 7	2	6 mm	1,05 mm	1,63 mm	1070 N	1245 N	3,3
30251	AK 3209	3,2 x 9	5
30253	AK 3212	3,2 x 12	8
30255	AK 4009	4 x 9	5	8 mm	1,45 mm	2,18 mm	1710 N	2240 N	4,1
30256	AK 4012	4 x 12	8
30257	AK 4014	4 x 14	10
30259	AK 4809	4,8 x 9	4	9,5 mm	1,75 mm	2,64 mm	2230 N	3070 N	4,9
30261	AK 4812	4,8 x 12	7
30272	AK 4814	4,8 x 14	9
30273	AK 4815	4,8 x 15	10
30274	AK 4819	4,8 x 19	14

POP GESIPA RIVETS

References	Dimensions
31865	Flat ø 2,4 x 6 mm
31866	Milled ø 3 x 6 mm

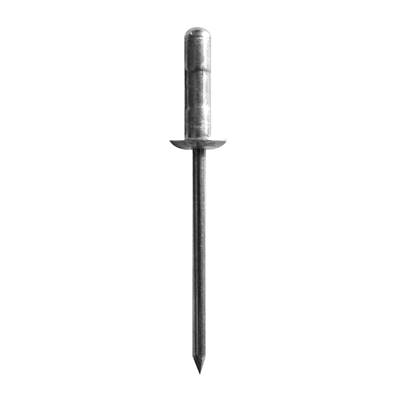

GESIPA ALUMINUM RIVETS

GESIPA rod-breaking rivets replace AVEX aluminum rivets, meeting a wide range of needs in terms of multi-clamping, rapid installation and consistent, reliable performance. GESIPA rivets replace AVEX in the construction of Colomban aircraft.

The characteristics of a GESIPA rivet are :

- Versatility
- Multi-tightening
- Stem locking after installation
- Pull-out resistance (tested and identical to AVEX)
- Aluminum or steel body
- Steel stem

Head	Diameter of the head	Clamping range
Flat	6,7	0,8 - 4,8
Countersunk	5,5	2,4 - 6,3

References	Dimensions
31868	Flat head ø 3.2 x 8 mm
31868-11	Flat head ø 3,2 x 8 mm
31869	120° countersunk ø 3.2 x 9.5 mm
31950-10	Flat head ø 4 x 10 mm (crimp 0.5 - 6.5)
31950-13	Flat head ø 4 x 13 mm (crimp 3.5 - 9.5)

POP rivet AD6412 6.4x12 (10 pieces)

(Code: 30287)

7.51 €

Details Add to Cart

POP rivet AD4818 4.8x18 (10 pieces)

(Code: 30288)

2.35 €

POP rivet AD4818 4.8x18 (10 pieces)

Details Add to Cart

GESIPA rivet 2.4 x 6 mm (x10)

(Code: 31865)

0.95 €

Standard GESIPA rivet - flat head diameter 2.4 x 6 mm Per 10

Details Add to Cart

Gesipa alu rivet 3 x 6

(Code: 31866)

0.98 €

Details Add to Cart

GESIPA rivet TF 3.2 x 9.5 (x10)

(Code: 31869)

0.56 €

GESIPA rivet TF 3.2 x 9.5 (x10)

Details Add to Cart

Rivet GESIPA PolyGrip 4 x 10 TP x10

(Code: 31950-10)

1.12 €

GESIPA rivet PolyGrip – Flat head diam 4 x 10 mm (Crimping from 0,5 to 1,5) – 10 pieces. Rivet diameter: 4 mm – Rivet length: 10 mm – Shearing resistance: 1060N – Traction resistance: 1680 N – Mandrel diameter: 2,3 mm – Head maximum diameter: 8 mm – Hole drilling diameter: 4,1 mm – Thickness to clamp diameter: from 0,5 to 6,5 mm

Details Add to Cart

Rivet GESIPA PolyGrip 4 x 13 TP x10

(Code: 31950-13)

0.98 €

GESIPA rivet PolyGrip – Flat head diam 4 x 13 mm (Crimping from 0,5 to 1,5) – 10 pieces. Rivet diameter: 4 mm – Rivet length: 13 mm – Shearing resistance: 1060N – Traction resistance: 1680 N – Mandrel diameter: 2,3 mm – Head maximum diameter: 8 mm – Hole drilling diameter: 4,1 mm – Thickness to clamp diameter: from 3,5 to 9,5 mm
