(Code: 62092) Yoke temperature sensor - Diam 18 mm - Weight: 27 gr
|
| (Code: 62094) Oil pressure sensor 5 bars - 10 x 100 - VDO - 10 or 5 Bars - Fixed with M10 x 100 screws
|
| (Code: 62095) 150°C temperature sensor - Oil temperature sensor from 0 to 150°C - 10 or 5 Bars - Fixed with M10x100 screws
|
|
(Code: 62096) 120°C temperature sensor - Water temperature sensor from 0 to 120°C - Fixed wiht M10 x 100 screws
|
| (Code: 62097) Cylinder temperature sensor - CHT 12 mm - Weight: 26 gr
|
| (Code: 62098) 150°C temperature sensor - C 1/8''
|
|
(Code: 62099) 120°C temperature sensor – 1/8’’ – Water temperature sensor from 0 to 120°C, fixed with 1/8’’ screws, fits for 2 times Rotax motors.
|
| (Code: 62101) 1/8’’ – 5/8’’ adapter. Sensor adapter to use to measure water and oil temperature or oil pressure from 1/8’’ to other nets. Allow to mount 1/8 sensors to continental motors.
|

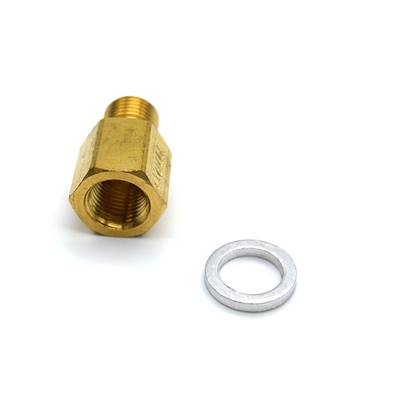

| (Code: 62102) 1/8'' adapter - 10 x 100 - Exclusively reserved for pressure sensor.
|
|

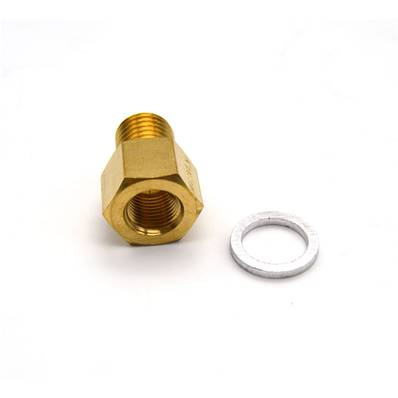

(Code: 62103) 1/8’’ adapter – 12 x 150 – Sensor adapter for water and oil temperature and oil pressure from 1/8’’ to other nets.
|

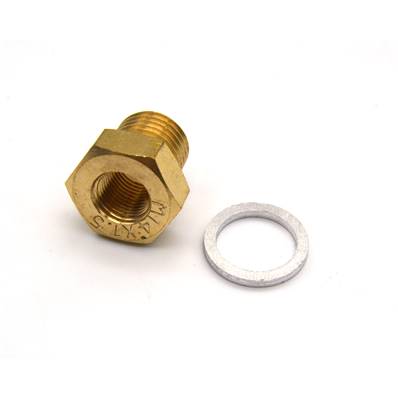

| (Code: 62104) 1/8’’ adapter – 14 x 150 – Sensor adapter for water and oil temperature and oil pressure from 1/8’’ to other nets.
|
| (Code: 62105-02) Supplementary econometer sensor FC
|
|
(Code: 62105-04) Supplementary econometer sensor FC
|
| (Code: 62132-01) Sensor for rotor RPM indicator. The RT2 is a multifunctional digital counter easy to use, disposing of a LCD four figures screen, exact same conception than the RT1. There is, in the same time, a rotor revolution counter, a chronometer and a rotor full hour meter easy to use. – Four figures LCD screen to know accurately your rotor revolutions and its functioning time, with3 color LED in order to ess instantly its system. Standard 2’ ¼ (57 mm) – Supply tension: 10~30V – Consumption: 40 mA – Functioning range: from 200 to 800 revolutions/ min – Weight: 103gr.
|
| (Code: 62198) Pressure probe fuel for MITCHELL manometer form 0 to 30 PSI Wieght: 122g - Unity
|
|
(Code: 62229-12) Sensor CHT 12 for SPEED instrument - Weight 14 gr
|

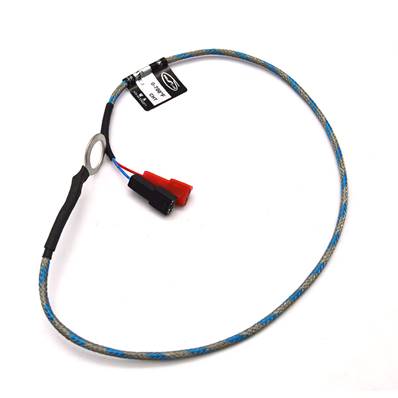

| (Code: 62229-14) Sensor CHT 14 for SPEED instrument - Weight 15 gr
|

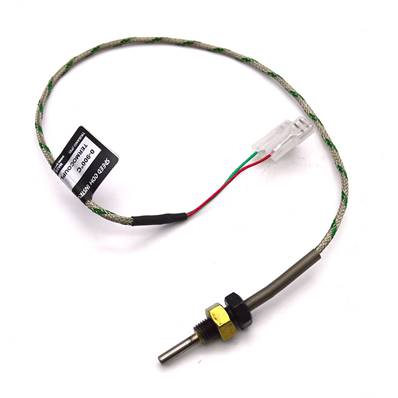

| (Code: 62229-VIS) Sensor EGT with screw - Weight: 26 gr
|
|
(Code: 62232-S) Fuel pressure sensor from 0 to 15 PSI - Diam 52 mm
|
| (Code: 62299-160) Tube gauge 16 cm - Other length are available - Gauge diam: 40 mm - Betwenn 60 and 90 Ohm
|
| (Code: 62299-220) Tube gauge 22 cm - Other length are available - Gauge diam: 40 mm - Between 60 and 90 Ohm
|
|
(Code: 62299-280) Tube gauge VDO 28 cm - Other length are available - Gauge diam: 40 mm - Between 60 and 90 Ohm
|
| (Code: 62299-340) Tube gauge 34 cm - Other length are available - Gauge diam: 40 mm - Between 60 and 90 Ohm
|
| (Code: 62299-400) Tube gauge VDO 40 cm - Between 60 and 90 Ohm
|
|
(Code: 62299-430) Tube gauge 43 cm - Other length are available - Gauge diam: 40 mm - Between 60 and 90 Ohm
|
| (Code: 62299-500) Tube gauge VDO 50 cm - Between 60 and 90 Ohm
|
| (Code: 62299-700) Tube gauge VDO 70 cm - Between 60 and 90 Ohm
|
|
(Code: 62299-790) Tube gauge 79 cm - Between 60 and 90 Ohm
|
| | |
