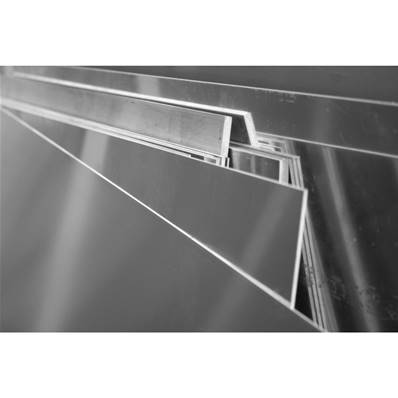

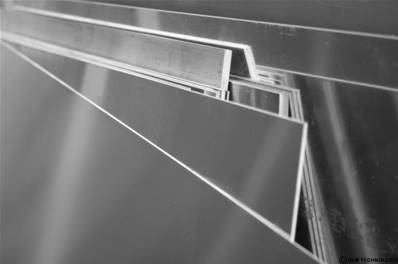

2017 Sheets Aluminium

2017 ALUMINUM ALLOY SHEET METAL

Dimensions	245 x 120 mm	245 x 245 mm	495 x 245 mm	495 x 495 mm	1000 x 495 mm
Thickness	Reference	Reference	Reference	Reference	Reference
1	52405-03	52405-06	52405-12	52405-25	52405-50
1,2	52406-03	52406-06	52406-12	52406-25	52406-50
1,5	52407-03	52407-06	52407-12	52407-25	52407-50
2	52408-03	52408-06	52408-12	52408-25	52408-50
3	52409-03	52409-06	52409-12	52409-25	52409-50
4	52410-03	52410-06	52410-12	52410-25	52410-50
5	52411-03	52411-06	52411-12	52411-25	52411-50
6	52412-03	52412-06	52412-12	52412-25	52412-50
8	52413-03	52413-06	52413-12	52413-25	52413-50
10	52414-03	52414-06	52414-12	52414-25	52414-50
12	52415-03	52415-06	52415-12	52415-25	52415-50
16	52416-03	52416-06	52416-12	52416-25	52416-50
20	52417-03	/	/	/	/

2017 (AU4G) = Aluminum + copper
Solution-hardened, cold-worked and matured.
Part of the "Hard" Alloys family.
Good mechanical properties. Most widely used in general mechanics. Difficult to weld and anodize.
Sectors of use: Mechanical engineering, Special machines.

↓ TECHNICAL FEATURES ↓

Yield strength Rp 0.2 (MPa) : 245

Breaking strength Rm (MPa) : 390

Lengthening : 15 %

Aluminum sheet 2017T4 1 x 245 x 120 mm

(Code: 52405-03)

13.75 €

Aluminum alloy sheet 2017 T4 thickness 1 mm x 245 x 120 mm

2017 Sheets Aluminium

2017 ALUMINUM ALLOY SHEET METAL

Aluminum sheet 2017T4 1 x 245 x 120 mm

Aluminum sheet 2017T4 1 x 245 x 245 mm

Aluminum sheet 2017T4 1 x 495 x 245 mm

Aluminum sheet 2017T4 1 x 495 x 495 mm

Aluminum sheet 2017T4 1 x 1000 x 495 mm

Aluminum sheet 2017T4 1.2 x 245 x120 mm

Aluminum sheet 2017T4 1.2 x 245 x 245 mm

Aluminum sheet 2017T4 1.2 x 495 x 245 mm

Aluminum sheet 2017T4 1.2 x 495 x 495 mm

Aluminum sheet 2017T4 1.2 x1000 x 495 mm

Aluminum sheet 2017T4 1.5 x1000 x 2000 mm

Aluminum sheet 2017T4 1.5 x 245 x 120 mm

Aluminum sheet 2017T4 1.5 x 245 x 245 mm

Aluminum sheet 2017T4 1.5 x 495 x 245 mm

Aluminum sheet 2017T4 1.5 x 495 x 495 mm

Aluminum sheet 2017T4 1.5 x1000 x 495 mm

Aluminum sheet 2017T4 2 x 245 x 120 mm

Aluminum sheet 2017T4 2 x 245 x 245 mm

Aluminum sheet 2017T4 2 x 495 x 245 mm

Aluminum sheet 2017T4 2 x 495 x 495 mm

Aluminum sheet 2017T4 2 x 1000 x 495 mm

Aluminum sheet 2017T4 3 x 245 x 120 mm

Aluminum sheet 2017T4 3 x 245 x 245 mm

Aluminum sheet 2017T4 3 x 495 x 245 mm

Aluminum sheet 2017T4 3 x 495 x 495 mm

Aluminum sheet 2017T4 3 x 1000 x 495 mm

Aluminum sheet 2017T4 4 x 1000 x 2000 mm

Aluminum sheet 2017T4 4 x 245 x 120 mm

Aluminum sheet 2017T4 4 x245 x 245 mm

Aluminum sheet 2017T4 4 x 495 x 245 mm
