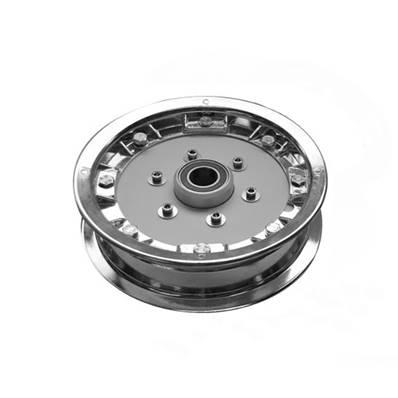

(Code: 41044) Aluminum wheel rim 8’, without a brake but with a 50 mm hub. Made by alloying aluminum. Rolling fit for a 25 mm diam axe (demountable wheel rim). Weight: 1.650 kg
|
| (Code: 41045) Aluminum wheel rim 8’ without a break but with a 50 mm hub. Made by alloying aluminum. Rolling fit for a 20 mm diam axe (demountable wheel rim). Weight: 1.650 kg
|

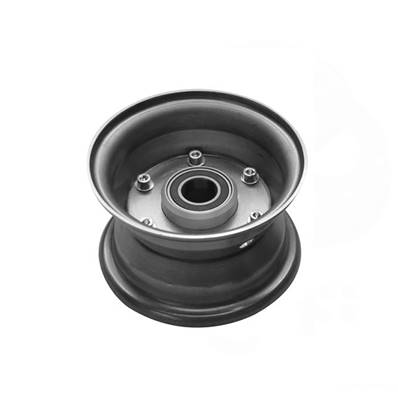

| (Code: 41046) Aluminum wheel rim 5’ (127 mm) without a break but with a hub, made by alloying aluminum. Rolling fit for a 25 mm diam axe (demountable wheel rim) Weight: 0.850 kg
|
|

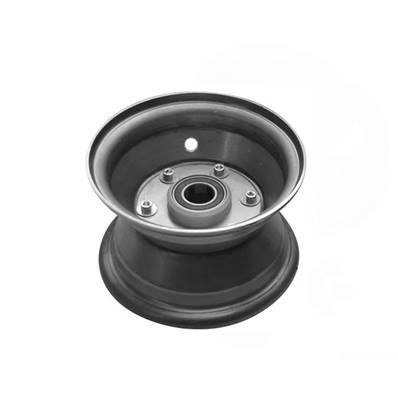

(Code: 41049) Aluminum wheel rim 6’ demountable without a rim, with a 50 mm hub, made by alloying aluminum. Rolling fit for a 25 mm diam axe. Weight: 0.850 kg
|

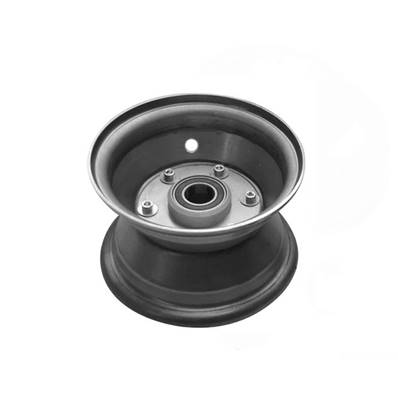

| (Code: 41050) Aluminum wheel rim 6’ without a break but with a 50 mm hub, made by alloying aluminum. Rolling fit for a 20 mm diam axe. Weight: 0.950 kg
|
| (Code: 41050-17) Aluminum wheel rim 6’ without a brake but with a 50 mm hub, made by alloying aluminum. Rolling fit for a 17 mm diam axe.
|
|

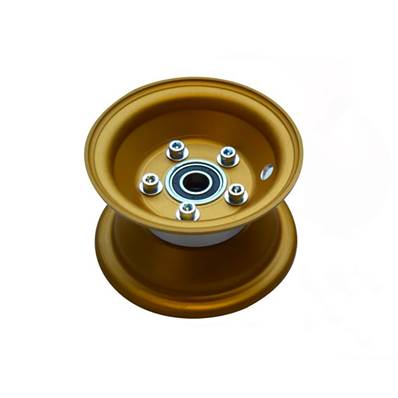

(Code: 41053) Aluminum wheel rim (101.6 mm) without a break but with a 27 mm hub. Made by alloying aluminum. Rolling fit diam 15 mm (demountable wheel rim). Wheel rim width: 65 mm (mounted hub) and 80 mm (middle hub). Weight: 0.450 kg
|

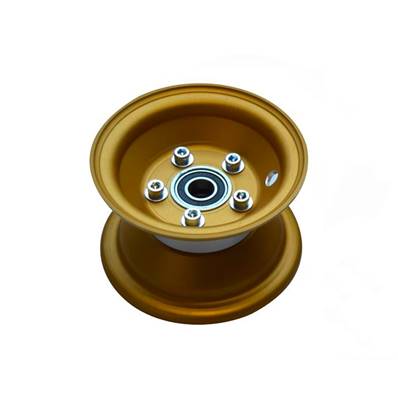

| (Code: 41054) Aluminum wheel rim 4’, without a brake but with a hub, made by alloying aluminum. The mounted wheel rim measures 27 mm. Rolling fit for a 12 mm diam axe. When the wheel rim is mounted: Exterior diam: 125 mm – Exterior full width: 80 or 65 mm, according to the position of the hub. Compatible with the tire 42156. Weight: 0.450 kg
|

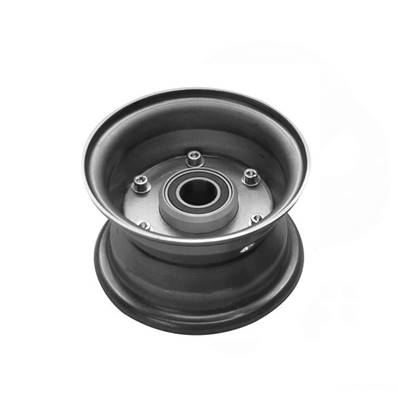

| (Code: 41057) Aluminum wheel rim 5’ (127 mm) without a break but with a 50mm hub, made by alloying aluminum. Rolling fit diam 20 mm. (Demountable wheel rim) Weight: 0.950 kg
|
|
(Code: 41057-17) ULM TECHNOLOGIE PARAMOTOR : interchangeable, robust aluminum structure. Frame color : black. Power Adjust selette including two storage lateral pockets, back and shoulders moss backup. Carbon two-blade propeller (E-Props) or wooden propeller on demand. 12L tank. ‘Standard’ gas command, ‘Full Control’ as an option. Full paramotor weight: 27.5 kg. Motoring: Simonini MINI4 engine. Course: 54 mm, bore: 62 mm, power: 23 cv on 7400 lap/min – Fuel: unleaded gasoline 98, +3% half synthesis oil – Starter: manual launcher – Carburetor: Walbro WB37 – Reducer: Poly-V belt – Clutch: no
|

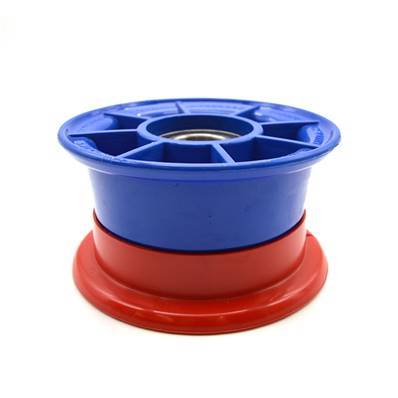

| | (Code: 41140) Plastic 4’ wheel rim without demountable brake. The ball bearing range is 46 mm on a 25 mm diameter axis. This wheel rim can be demounted without any tools. Weight: 0,470 kg
|
|

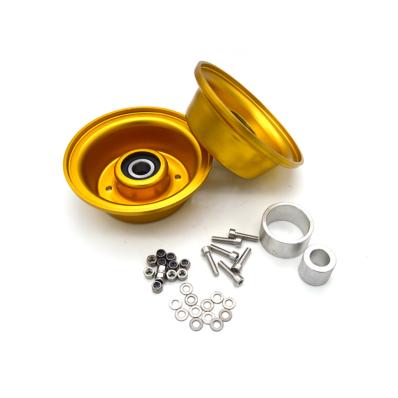

(Code: 41184-15) Demountable 4’ aluminum wheel rim without brake, with rolling fit for a 15 mm axis. Rolling cage with 15 x 42 mm bearing system. Width: 80mm. Weight: 0,450 kg.
|
| (Code: 41184-20) Demountable 4’ aluminum wheel rim without brake, with rolling fit for a 20 mm axis. Rolling cage with 15 x 42 mm bearing system. Width: 80mm. Weight: 0,450 kg.
|

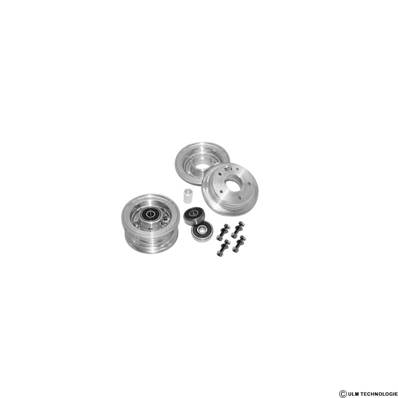

| (Code: 41185-15) Aluminum 3’ cleavage wheel rim with interior 15 rolling system. Building it with the 250x3’ 4 ply tire makes it a tail landing gear for ULM and aircraft. In the MC 100 case, a light front wheel offers little drag.
|
|

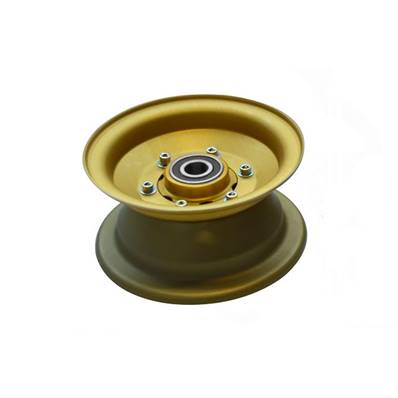

(Code: 41231-00) 6’ wheel rim without brake, width: 100 mm, made by alloying 6082 stamped and annealed aluminum, for ULM and light aircrafts. Static charge: 250 kg per wheel (tested on 1152 kg with a tiny elastic distortion). 6003 and 6004 rolling fit for 20 mm axis. Weight: 1,010 kg.
|

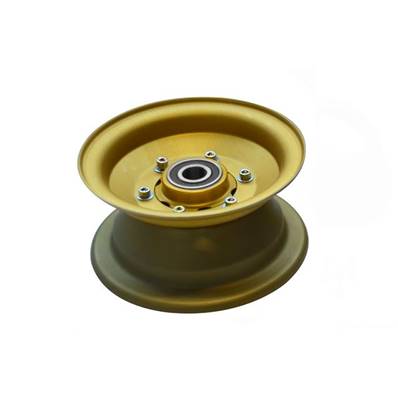

| (Code: 41231-80) 6’ wheel rim without brake, width: 80 mm, made by alloying 6082 stamped and annealed aluminum, for ULM and light aircrafts. Static charge: 250 kg per wheel (tested on 1152 kg with a tiny elastic distortion). 6003 and 6004* rolling fit for 20 mm axis. Weight: 1,010 kg.
|

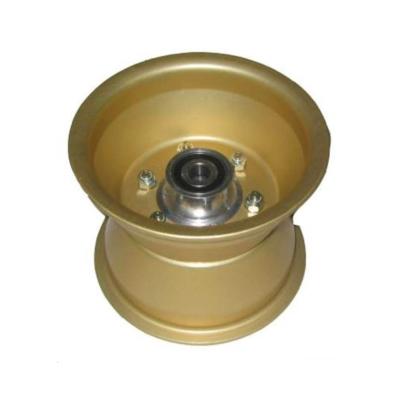

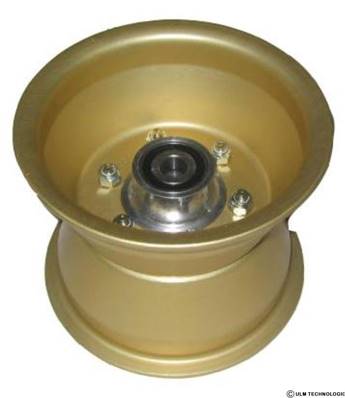

| (Code: 42347-00) Rim SF 6' matco
|
|
