Stainless Steel Rivets

STAINLESS STEEL RIVETS

Standard 'POP' RIVETS

Rivet : Stainless steel

Mandrel : Stainless steel

According to BS3L58
Melting temperature: 1450°C

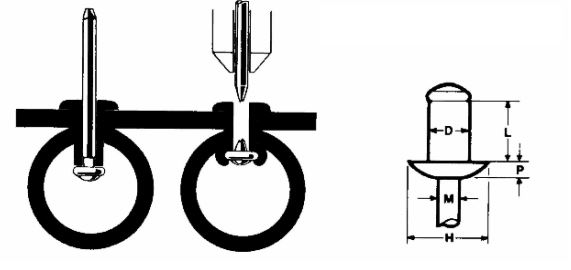

Références	Code	D x L ⌀ Rivet x long mm	Max. thickness flat-head crimping	H diam. head	P Top head	M diam. mandrel	Breaking loads per rivet in shear / tension		⌀ of drilling
30425	BTD3206	3,2 x 6	3,5	6,34 mm	1,02 mm	1,93 mm	1800 N	2500 N	3,5 mm
30431	BTD3208	3,2 x 8	5,5
30426	BTD3210	3,2 x 10	7
30427	BTD3212	3,2 x 12	9
30428	BTD3215	3,2 x 16	13
30429	BTD4008	4 x 8	5	8 mm	1,12 mm	2,42 mm	3100 N	3800 N	4,1 mm
30436	BTD4010	4 x 10	6,5
30458	BTD4012	4 x 12	8,5
30437	BTD4016	4 x 16	12,5
30438	BTD4808	4,8 x 8	4,5	9,6 mm	1,4 mm	2,9 mm	4500 M	6000 N	4,9 mm
30430	BTD4812	4,8 x 12	8
30439	BTD4814	4,8 x 14	10
30445	BTD4818	4,8 x 18	14

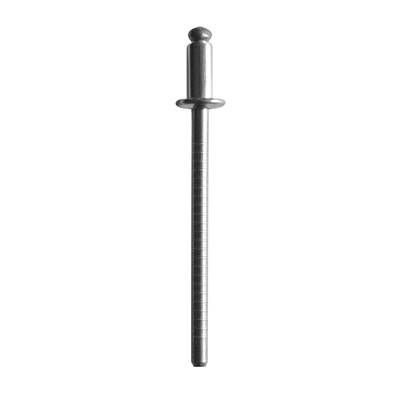

Stainless rivet BTD3206 TP 3.2 x 6

(Code: 30425)

Stainless rivet BTD3206 TP 3.2 x 6

1.70 €

Stainless steel rivet BTD3206 TP 3.2 x 6 mm (10 pieces)

Details Add to Cart

Stainless rivet BTD3210 TP 3.2 x10.

(Code: 30426)

Stainless rivet BTD3210 TP 3.2 x10.

2.12 €

Stainless steel rivet BTD3210 TP 3.2 x 10.40 mm (10 pieces)

Details Add to Cart

Stainless rivet BTD3212 TP 3.2x12

(Code: 30427)

Stainless rivet BTD3212 TP 3.2x12

2.08 €

Stainless steel rivet BTD3212 TP 3.2 x 12 mm (10 pieces)

Details Add to Cart

Stainless rivet BTD3215 TP 3.2 x 15

(Code: 30428)

Stainless rivet BTD3215 TP 3.2 x 15

3.00 €

Stainless steel rivet BTD3215 TP 3.2 x 15 mm (10 pieces)

Details Add to Cart

Stainless rivet BTD4008 TP 4x8 mm

(Code: 30429)

Stainless rivet BTD4008 TP 4x8 mm

3.14 €

Details Add to Cart

Stainless rivet BTD4812 TP 4.8x12

(Code: 30430)

Stainless rivet BTD4812 TP 4.8x12

3.73 €

Stainless steel rivet BTD4812 TP 4.8x12 mm (10 pieces)

Details Add to Cart

Stainless rivet BTD3208 TP 3.2x8 mm

(Code: 30431)

Stainless rivet BTD3208 TP 3.2x8 mm

1.67 €

Stainless steel rivet BTD3208 TP 3.2x8mm (10 pieces)

Details Add to Cart

Stainless rivet BTD4010 TP 4x10 mm

(Code: 30436)

Stainless rivet BTD4010 TP 4x10 mm

2.82 €

Details Add to Cart

Stainless rivet BTD4016 TP 4x16 mm

(Code: 30437)

Stainless rivet BTD4016 TP 4x16 mm

3.54 €

Details Add to Cart

Stainless rivet BTD4808 TP 4.8x8

(Code: 30438)

Stainless rivet BTD4808 TP 4.8x8

4.55 €

Details Add to Cart

Stainless rivet BTD4814 TP 4.8x14

(Code: 30439)

Stainless rivet BTD4814 TP 4.8x14

4.06 €

Stainless steel rivet BTD4814 TP 4.8x14 mm (10 pieces)

Details Add to Cart

Stainless rivet BTD4818 TP 4.8x18

(Code: 30445)

Stainless rivet BTD4818 TP 4.8x18

4.68 €

Details Add to Cart

Stainless rivet BTD4012 TP 4x12 mm

(Code: 30458)

Stainless rivet BTD4012 TP 4x12 mm

3.13 €

Stainless steel rivet BTD4012 TP 4x12 mm (10 pieces)

Details Add to Cart
